Product : DMY12 Magnetic Yoke Flaw Detector
Model : DMY12
Country of Origin : CHINA
Brand : DTEC
Quality Certified : ISO,CE
Delivery Time : 3 days
Packing Weight : 8-11KG
Dimension : 42x42x38cm(LxWxH)
Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  • Product Intro
  • Feature
  • Specification
  • Packing List

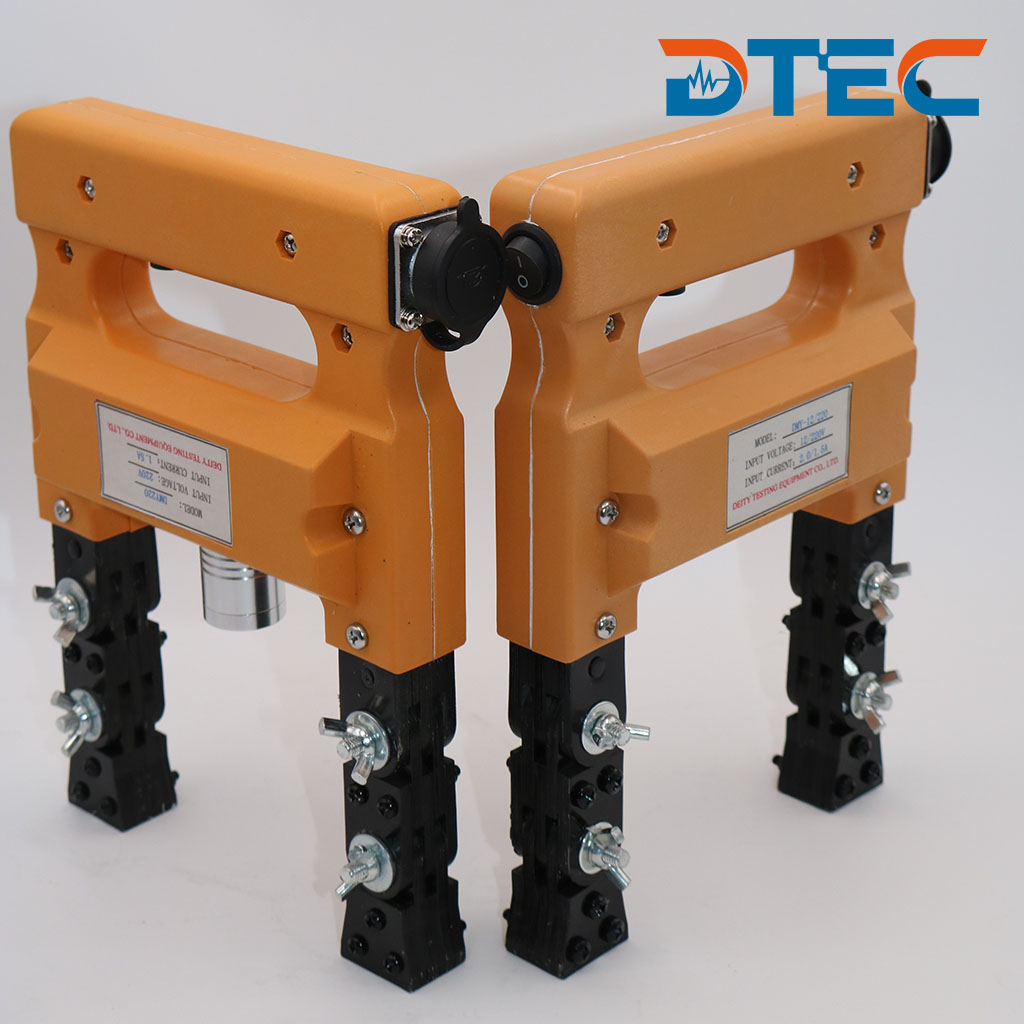

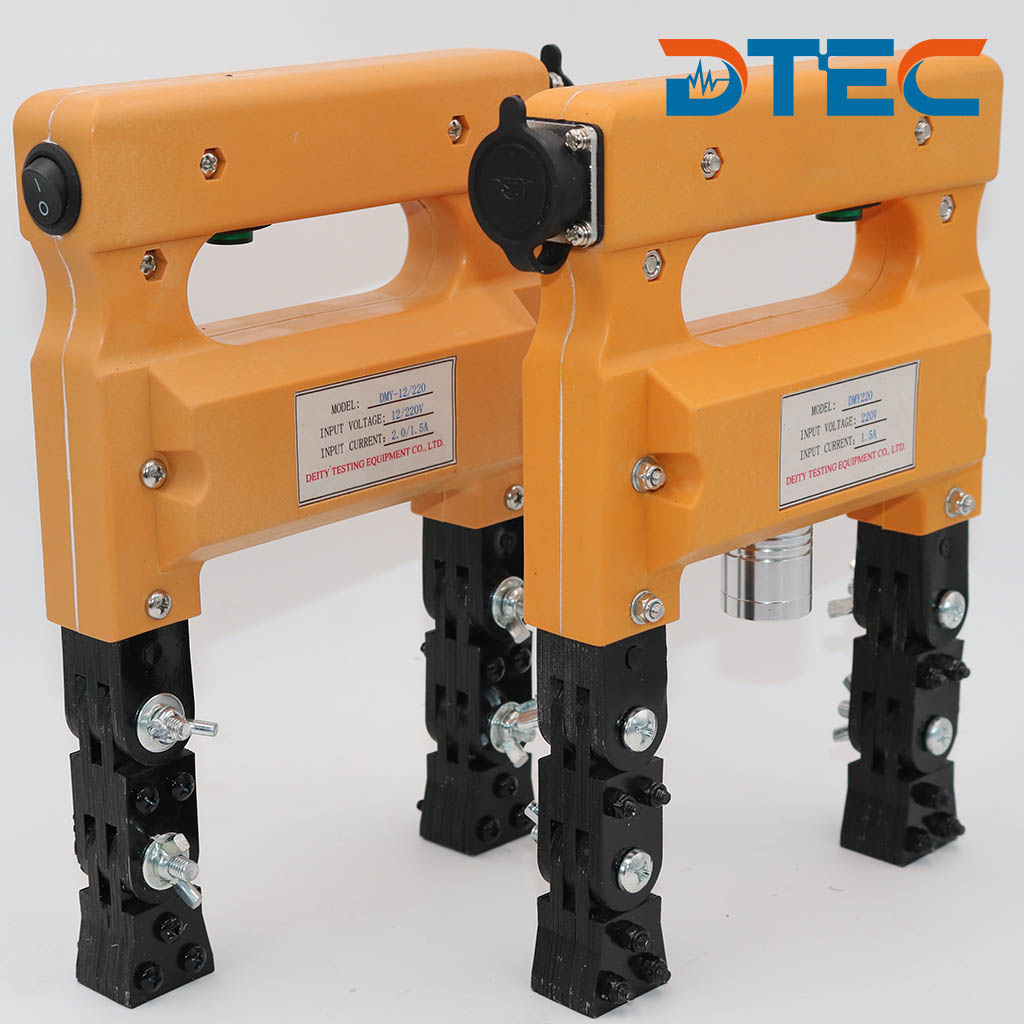

DMY series Magnetic Yoke Flaw Detector is a kind of portable magnetic flaw detector, which employs the yoke to produce magnetization on the ferromagnetic material. There are three types of magnetic yoke flaw detector according to different power source, AC, DC and AC-DC dual use. DC power source is rechargeable battery, it is applicable to field operation with no power supply and high voltage which can not enter the field, such as container, bridges, pipelines and other field operations; with 6 continuous working hours after a full charge. AC power source adopts 220V directly supplied power, without the need of ancillary equipment, with easy operation, simple, light weight, easy to carry, hence, this equipment is widely used.



 Application:



Magnetic Yoke Flaw Detector can make magnetization to various components of, They are applicable to oil, shipbuilding, engine parts, coal, machinery, standard parts, oil pump and nozzle, aircraft manufacturing, automobile other pieces, bridge-building, chemical industry, boiler and pressure vessel, railways and other industry products, due to forging, quenching, welding, fatigue caused by surface and near surface defects, such as chain rod, crankshaft, bearings, high strength bolts, springs, forgings, petrochemical pipe fittings, valves, blades, gears, rollers, chains and complex geometry such as weld inspection of the workpiece.

DC crack detection (DMY12-220 DMY12):

1) Connect the Yoke to the storage battery, hence it supply power to the yoke;

2) Before detecting, put the yoke probe on the surface of workpiece and make sure the well contact;

3) Switch on and then spray the powder or magnetic suspension to the testing area, and maintain 2 ~ 3s;

4) Release the switch and remove the yoke, check the specimen;

5) Change a new area and test again, repeat Steps 3) and 4).



AC crack detection (DMY12-220 DMY220):

1) Connect the power cable to the 220V power socket(make sure the socket come with ground wire and well connected);

2) While testing, do the same as above steps 3) and 4).



Model
DMY12-220
DMY12
DMY220
Power supply mode
AC-DC
DC
AC
Power Supply
220V50Hz–12V
–12V
220V50Hz
Charging Power
220V 50Hz
220V 50Hz

Battery
MF12—7.2H
MF12—7.2H

Working Current
AC1.4A/DC1.7A
DC1.7A
AC1.4A
Charging Time
8-15h
8-15h

Working Hours
Over 6 Hours
Over 6 Hours

Working time gap
One second
Magnetization Pole Distance
50-200mm
50-200mm
50-200mm
Elevating Force
A C
>5.5kg

>5.5kg
D C
>25kg
>25kg

Weight
Yoke
3.2kg
3.2kg
3.2 kg
Battery Box
2.9kg
2.9kg


Dimension(㎜)
Yoke
208×52×146
208×52×146
208×52×146
Battery Box
160×100×70
160×100×70

Charger
80×60×40
80×60×40

Model
DMY12-220
DMY12
DMY220
Power supply mode
AC-DC
DC
AC
Yoke (Probe)
1Pcs.
1Pcs.
1Pcs.
Battery Box
1Pcs.
1Pcs.

Battery
1Pcs.
1Pcs.

Charger
1Pcs.
1Pcs.

Power Cable
1Pcs.

1Pcs.

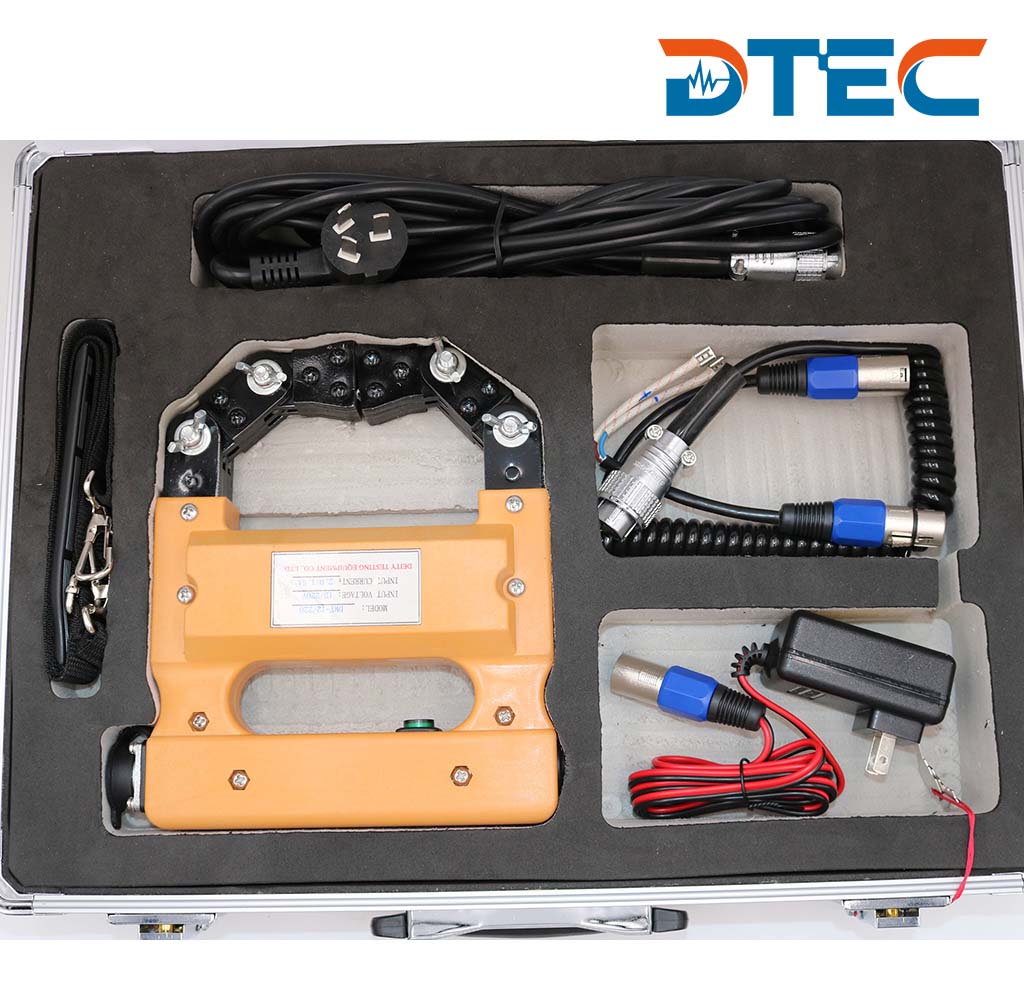

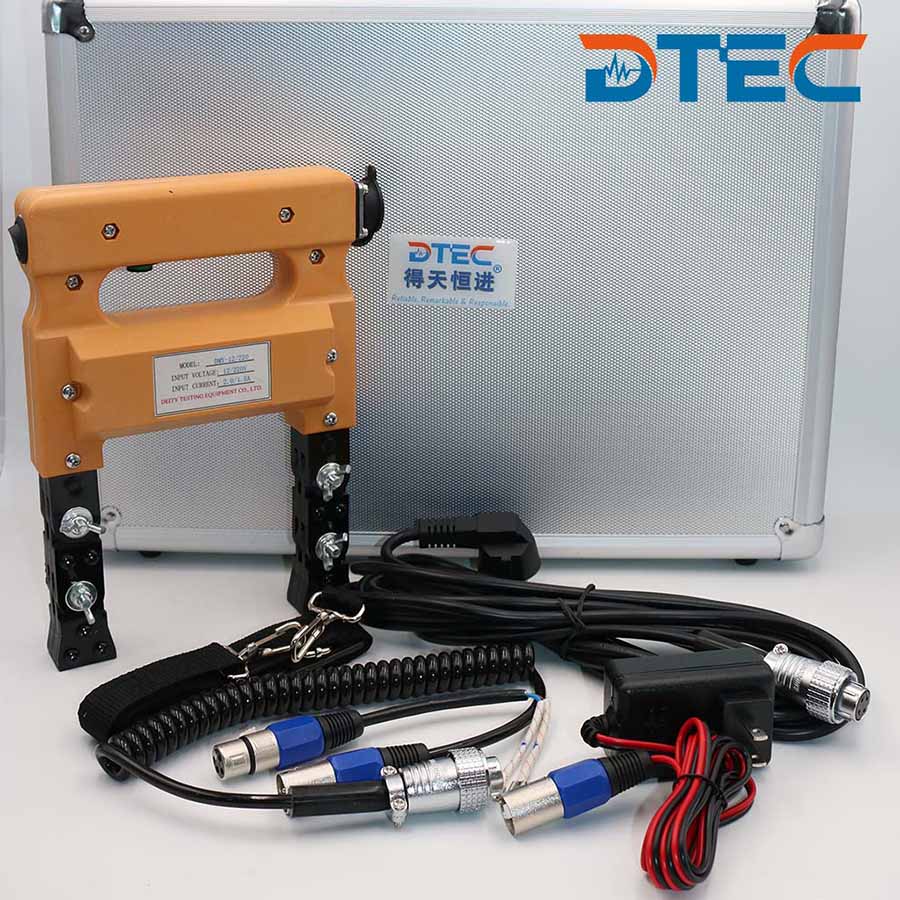

Surrounding Cable
1Pcs.
1Pcs.

User’s Manual
1Pcs.
1Pcs.
1Pcs.
Quality Certificate
1Pcs.
1Pcs.
1Pcs.
