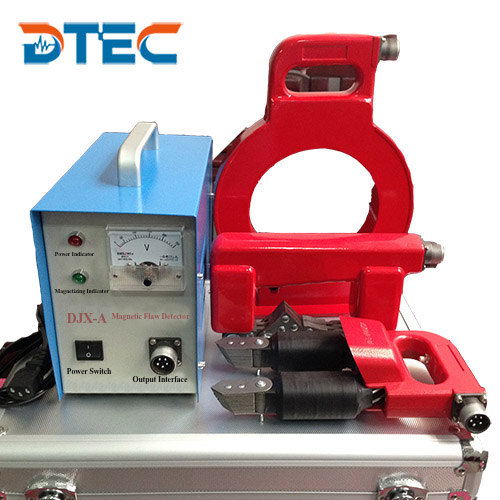

Product : DJX-A Magnetic Flaw Detector
Model : DJX-A
Country of Origin : CHINA
Brand : DTEC
Quality Certified : ISO，CE
Delivery Time : 3 days
Packing Weight : 8.8-10KG
Dimension : 45x45x38cm(LxWxH)
Package Type : Maker's Standard Export Carton Box
Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
 |
- Product Intro
- Feature
- Specification
- Packing List

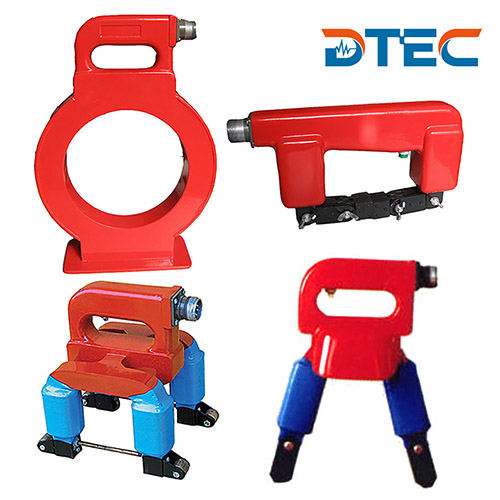

DJX-A Magnetic Flaw Detector is also a new designed magnetic flaw positioning equipment，which is researched, developed and manufactured by ourselves combining the advantages of its counterparts from both home and abroad. It adopts Magnetization mode of extra magnetic field, which makes the equipment small in size and light in weight. Packaging with Aluminum Alloy instrument case, This type is suitable for A,D,O three types of probes.

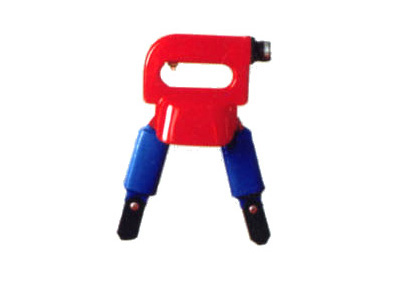

►A type probe: Widely used due to its turning joint;
It is also called horseshoe-shaped magnetic yoke probe or fillet weld probe, turning joint angular magnetic head, which is fitted with a working lamp and is especially suitable for flaw detection on specimens with abnormal face and complicated shape.
Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2KG;
Equipment made by this probe is called horseshoe-shaped magnetic yoke flaw detector or fillet weld flaw detector;

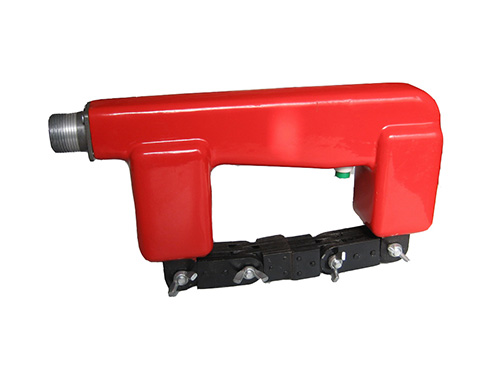

►D type probe: High magnetic inductivity and great magnetization strength;
It is called electromagnetic yoke probe with various turning joints and great magnetization strength.
Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
Equipment independently made by this probe is named electromagnetic yoke flaw detector.

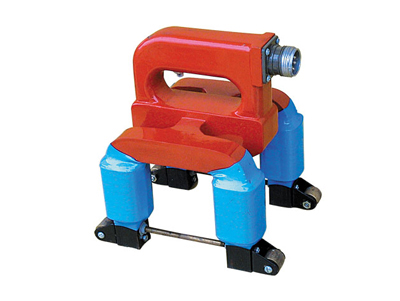

►E type probe: Fast detection speed and high testing quality;
It is also called crossing magnetic yoke probe or rotating-field probe, which can comprehensively detect the flaw by complex magnetization at a time. Crack detection speed can be increased by using roller and working lamp.
Polar Distance: 110mm;
Lifting Power: AC≥12KG;
Weight:3KG;
Equipment independently made by this probe is named rotating-field flaw detector, which uses two crossing magnetic yokes adopts AC move-phase technology to produce a synthetic rotating field that varies with time to comprehensively detect the flaw by complex magnetization at a time.

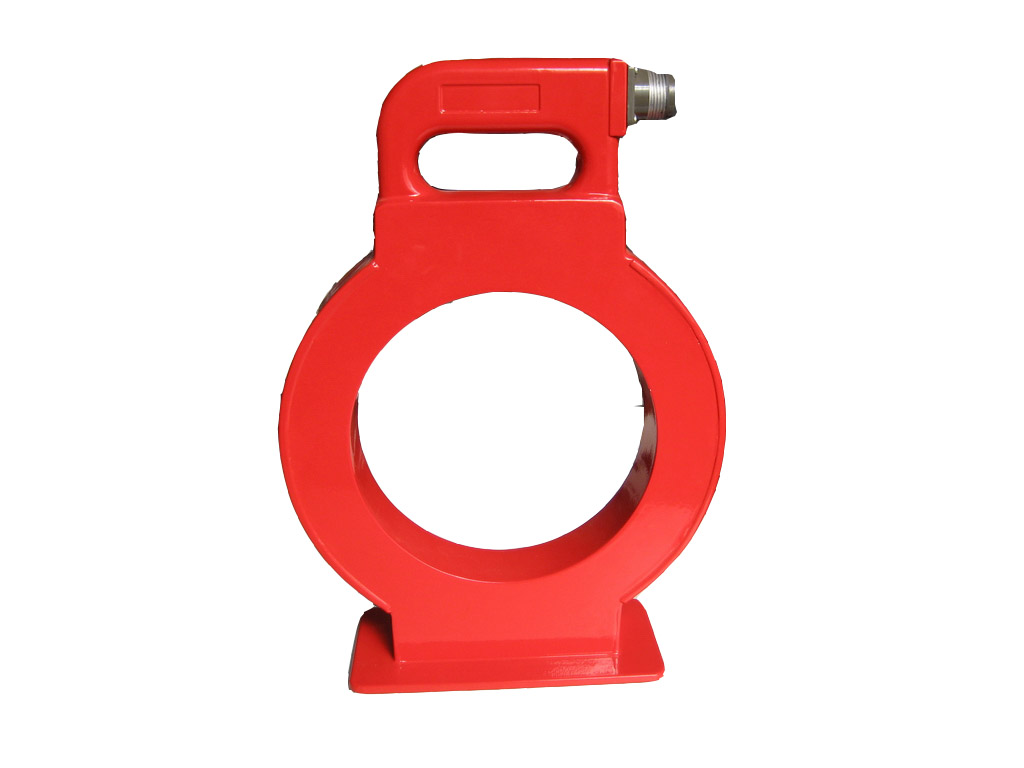

►O type probe: Suitable for sectional flaw detection or demagnetization on complicated specimens including axles, bars, pipes and vanes.
It is also called ring probe with an internal diameter of 150mm and center field ≥1800e.
Weight:2.5KG;
Equipment independently made by this probe is named ring flaw detector. It is designed on the principle of forming a strong magnetic field by energizing a coil.
It is also called horseshoe-shaped magnetic yoke probe or fillet weld probe, turning joint angular magnetic head, which is fitted with a working lamp and is especially suitable for flaw detection on specimens with abnormal face and complicated shape.
Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2KG;
Equipment made by this probe is called horseshoe-shaped magnetic yoke flaw detector or fillet weld flaw detector;
►D type probe: High magnetic inductivity and great magnetization strength;
It is called electromagnetic yoke probe with various turning joints and great magnetization strength.
Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
Equipment independently made by this probe is named electromagnetic yoke flaw detector.
►E type probe: Fast detection speed and high testing quality;
It is also called crossing magnetic yoke probe or rotating-field probe, which can comprehensively detect the flaw by complex magnetization at a time. Crack detection speed can be increased by using roller and working lamp.
Polar Distance: 110mm;
Lifting Power: AC≥12KG;
Weight:3KG;
Equipment independently made by this probe is named rotating-field flaw detector, which uses two crossing magnetic yokes adopts AC move-phase technology to produce a synthetic rotating field that varies with time to comprehensively detect the flaw by complex magnetization at a time.
►O type probe: Suitable for sectional flaw detection or demagnetization on complicated specimens including axles, bars, pipes and vanes.
It is also called ring probe with an internal diameter of 150mm and center field ≥1800e.
Weight:2.5KG;
Equipment independently made by this probe is named ring flaw detector. It is designed on the principle of forming a strong magnetic field by energizing a coil.
|
Model
|
DMT-III
|
DMT-V
|
DJX-A
|
|
Suitable Probes
|
A,D,E,O
|
A,D,E,O
|
A,D,O
|
|
Power Supply
|
220V±10% 50Hz 5A
|
220V±10% 50Hz 5A
|
220V±10% 50Hz 5A
|
|
Output
|
AC 36Vx2 15A
|
AC 0-38V 0-15A
|
|
|
Detection Speed (Demagnetizing Time) |
≥6M/Min |
4 Seconds
|
≥6M/Min |
|
Probe Working Temperature
|
≤60℃
|
≤60℃ |
≤60℃ |
|
Packing Weight (Exclude Probe)
|
8KG
|
8KG
|
7KG
|
|
Working Extent
|
When long time’s continuous work:
Magnetizing Time≤3 Seconds;
Slot Time≥5 Seconds. |
||
Standard Packing:
Optional Accessories:
►A Type Probe
Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2.5KG;
►D Type Probe:
Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
►E Type Probe:
Polar Distance: 110mm;
Lifting Power: AC≥12KG;
Weight:3KG;
►O Type Probe:
Internal Diameter:150mm;
Center Field ≥1800e;
Weight:2.5KG;
|
Items
|
Qty.
|
Notes
|
|
Main Unit
|
1
|
|
|
Probe
|
1
|
Type A,D or O
|
|
Power Cable
|
1
|
|
|
Output Cable
|
1
|
|
|
Fuse
|
2
|
5A
|
|
High Brightness Lamp
|
1
|
10W/12V
|
|
Manual Book, Quality Certificate
|
Each 1
|
|
Optional Accessories:
►A Type Probe
Polar Distance: 20-160mm;
Lifting Power: AC≥4.5KG,DC≥18KG;
Weight : 2.5KG;
►D Type Probe:
Polar Distance:60-220mm;
Lifting Power: AC≥5KG,DC≥18KG;
Weight: 2.5KG;
►E Type Probe:
Polar Distance: 110mm;
Lifting Power: AC≥12KG;
Weight:3KG;
►O Type Probe:
Internal Diameter:150mm;
Center Field ≥1800e;
Weight:2.5KG;
