Products > Probes & ACCs > UT Probes and Blocks > Dual Crystal Normal Straight Probe for UT(customized)
|
Product : Dual Crystal Normal Straight Probe for UT(customized)
Model : DP-10
Country of Origin : CHINA
Brand : DTEC
Quality Certified : EN12668-2
Delivery Time : 7 working days
Packing Weight : 0.15KG
Dimension : Height:48mm,External Dia.:25mm
Package Type : Maker's Standard Export Carton Box
Courier : DHL/TNT/FedEx/UPS/EMS
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
 |
- Product Intro
- Feature
- Specification
- Packing List
We are Original probe producer,can make you probes at any given requirement,including brand label,e.g.GE,Olympus etc.All our probes comes with high quality crystal,with good signal and stable.
►All probe specification can be customized according to your requirement.
Plese do inform me the folowing information when you need UT probes:
1):Probe type(Angle Probe or Straight Probe);
2):Angle(40C,60C,70C or others);
3):Crystal Size(normal size:8x9mm);
4)Frequency(normal 2MHz,4MHz).
The probe price mainly depends on the crystal size.
And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°，45°，60°，70°，80°.
►All probe specification can be customized according to your requirement.
Plese do inform me the folowing information when you need UT probes:
1):Probe type(Angle Probe or Straight Probe);
2):Angle(40C,60C,70C or others);
3):Crystal Size(normal size:8x9mm);
4)Frequency(normal 2MHz,4MHz).
The probe price mainly depends on the crystal size.
And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°，45°，60°，70°，80°.
We are Original probe producer,can make you probes at any given requirement,including brand label,e.g.GE,Olympus etc.All our probes comes with high quality crystal,with good signal and stable.
►All probe specification can be customized according to your requirement.
Plese do inform me the folowing information when you need UT probes:
1):Probe type(Angle Probe or Straight Probe);
2):Angle(40C,60C,70C or others);
3):Crystal Size(normal size:8x9mm);
4)Frequency(normal 2MHz,4MHz).
The probe price mainly depends on the crystal size.
And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°，45°，60°，70°，80°.
►All probe specification can be customized according to your requirement.
Plese do inform me the folowing information when you need UT probes:
1):Probe type(Angle Probe or Straight Probe);
2):Angle(40C,60C,70C or others);
3):Crystal Size(normal size:8x9mm);
4)Frequency(normal 2MHz,4MHz).
The probe price mainly depends on the crystal size.
And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°，45°，60°，70°，80°.
|
Crystal Size
|
10mm
|
|
Crystal Type
|
Double Crystal
|
|
Crystal Angle
|
0°
|
|
Testing Range
|
8mm-50mm(according to required focus distance) |
|
Center Frequency
|
5MHz
|
|
Test Standard Based
|
EN12668-2
|
|
Material
|
Stainless Steel
|
|
Sensitivity
|
52-54dB
|
|
Resolution
|
34dB
|
|
Initial Pulse Width
|
3mm
|
|
Angular deviation
|
±1°
|
|
Focal Distance
|
10mm
|
|
Electrical Impedance
|
49Ω
|
|
Working Temperature
|
-5-50°C
|

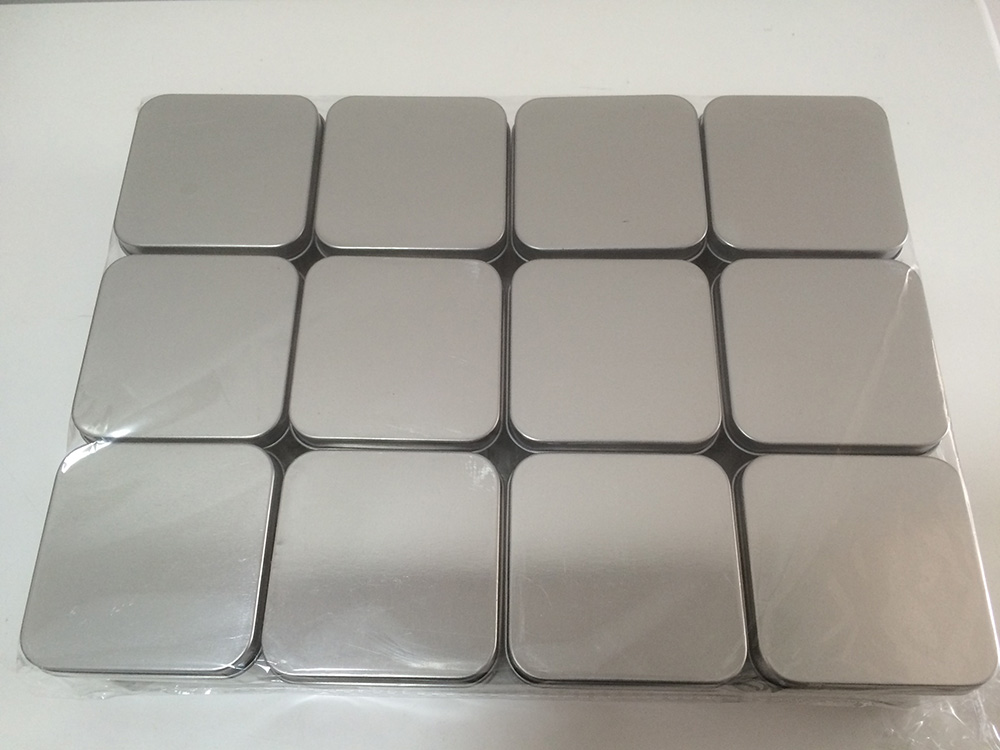

Packed with small metal case as following:
