Products > NDT Equipment > MT > DMY12-220 Magnetic Yoke Flaw Detector

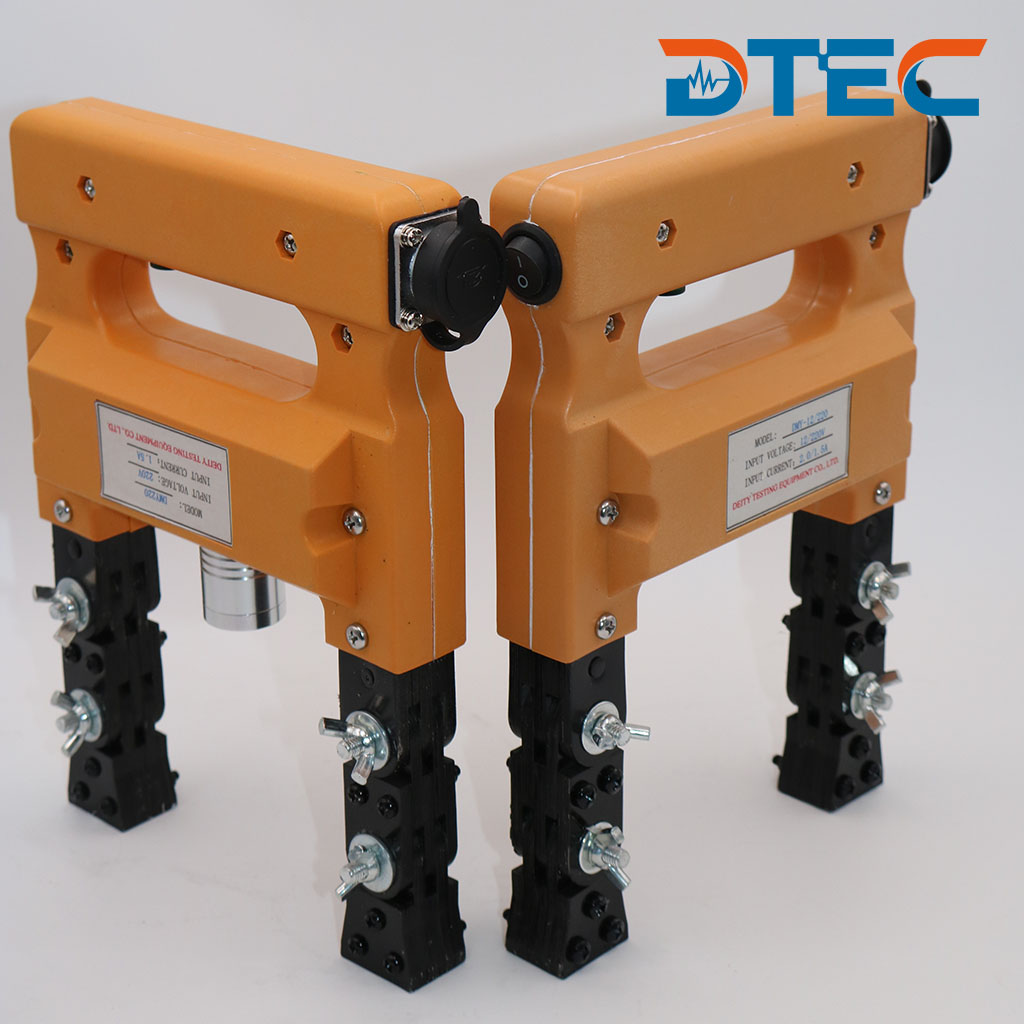

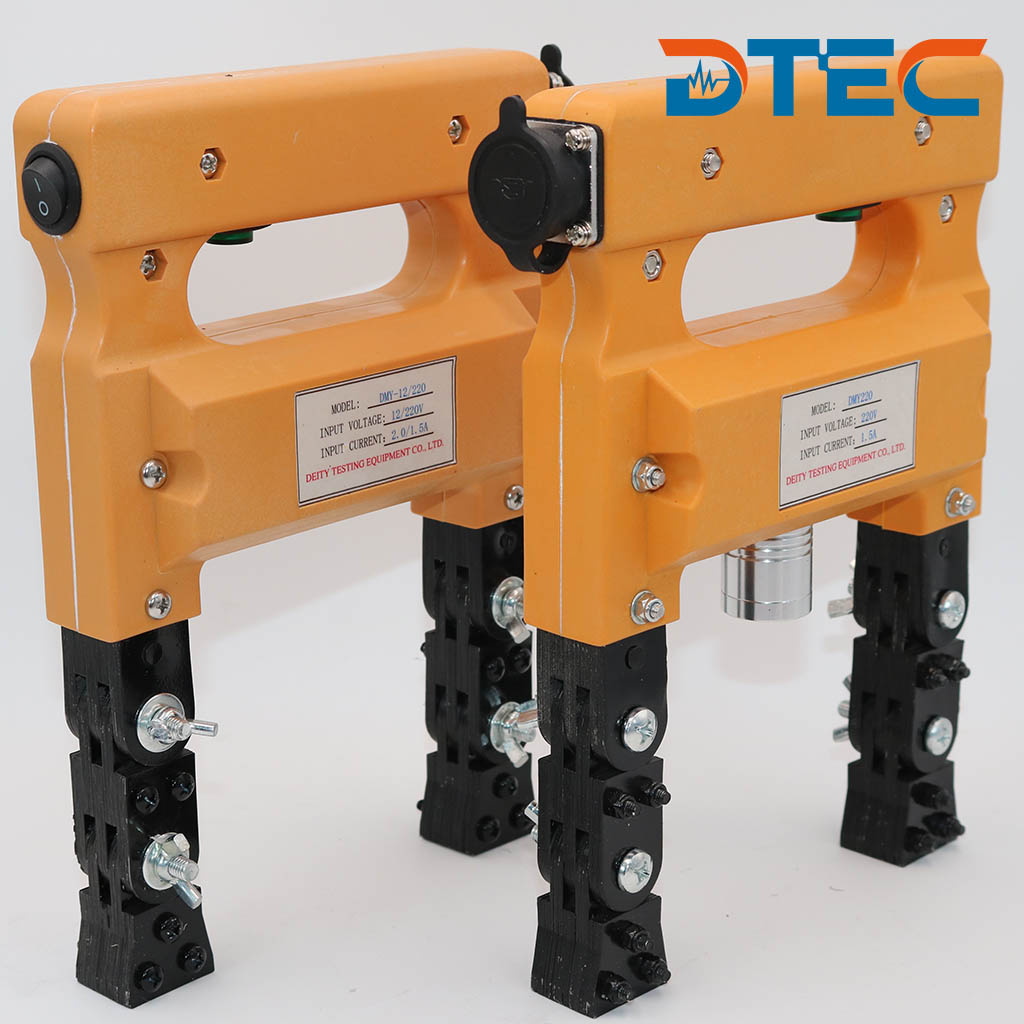

Product : DMY12-220 Magnetic Yoke Flaw Detector

Model : DMY12-220

Country of Origin : CHINA

Brand : DTEC

Quality Certified : ISO,CE

Delivery Time : 3 days

Packing Weight : 8-11KG

Dimension : 42x42x38cm(LxWxH)

Package Type : Maker's Standard Export Wooden Case

Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent

Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union

Enlarge Image

Back

←[Previous Product] [Next Product]→

Product Intro
Feature
Specification

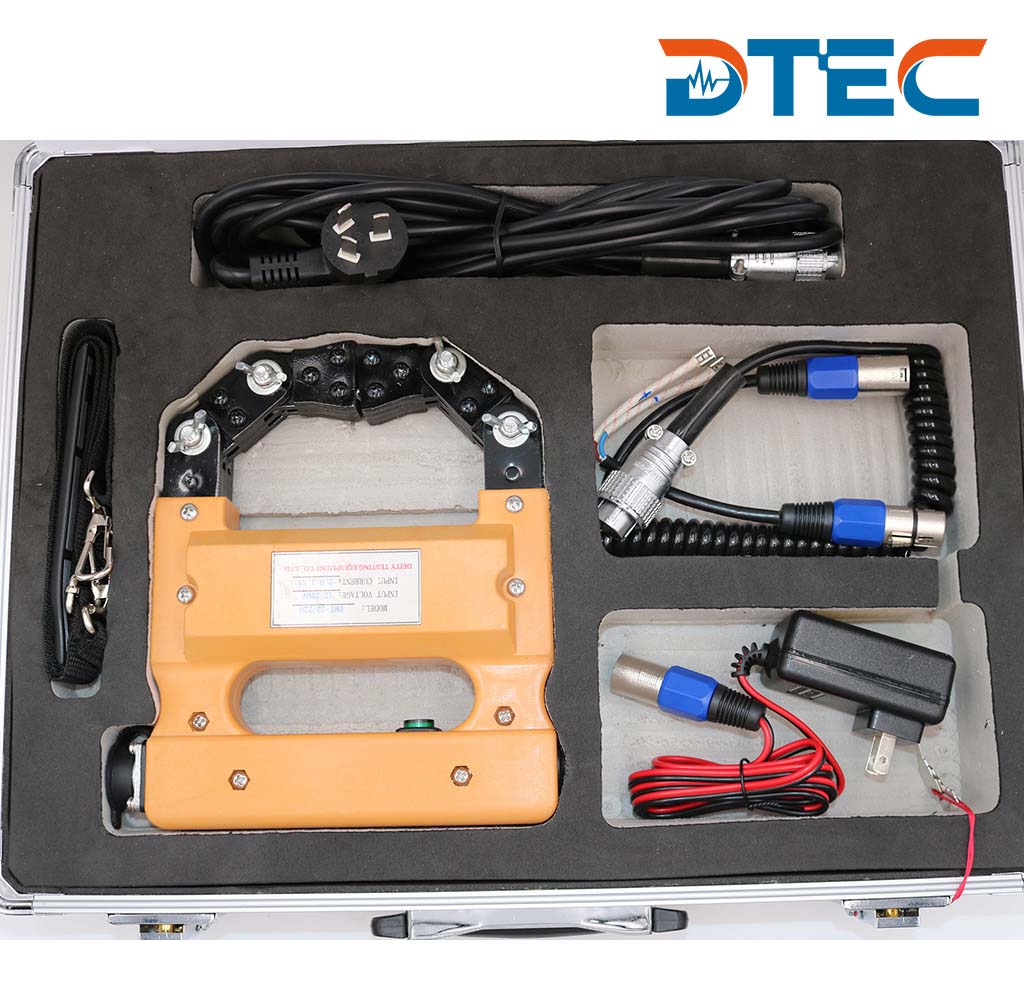

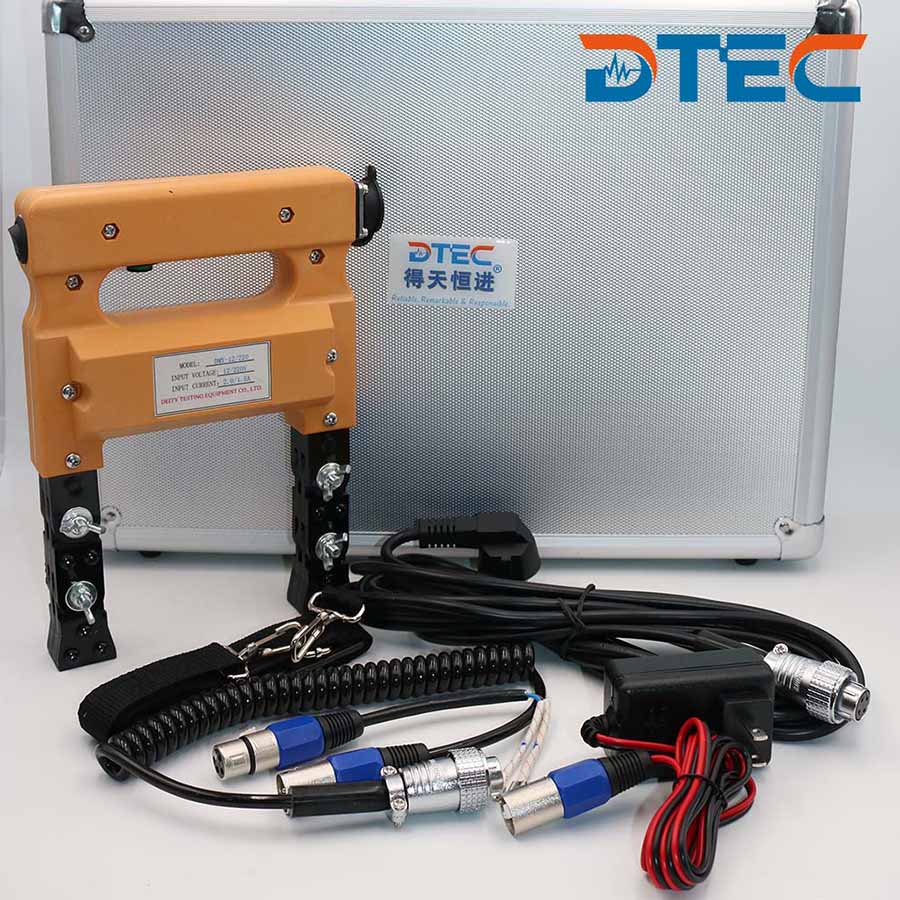

Packing List

DMY series Magnetic Yoke Flaw Detector is a kind of portable magnetic flaw detector, which employs the yoke to produce magnetization on the ferromagnetic material. There are three types of magnetic yoke flaw detector according to different power source, AC, DC and AC-DC dual use. DC power source is rechargeable battery, it is applicable to field operation with no power supply and high voltage which can not enter the field, such as container, bridges, pipelines and other field operations; with 6 continuous working hours after a full charge. AC power source adopts 220V directly supplied power, without the need of ancillary equipment, with easy operation, simple, light weight, easy to carry, hence, this equipment is widely used.

Application:

Magnetic Yoke Flaw Detector can make magnetization to various components of, They are applicable to oil, shipbuilding, engine parts, coal, machinery, standard parts, oil pump and nozzle, aircraft manufacturing, automobile other pieces, bridge-building, chemical industry, boiler and pressure vessel, railways and other industry products, due to forging, quenching, welding, fatigue caused by surface and near surface defects, such as chain rod, crankshaft, bearings, high strength bolts, springs, forgings, petrochemical pipe fittings, valves, blades, gears, rollers, chains and complex geometry such as weld inspection of the workpiece.

DC crack detection (DMY12-220 DMY12):

1) Connect the Yoke to the storage battery, hence it supply power to the yoke;

2) Before detecting, put the yoke probe on the surface of workpiece and make sure the well contact;

3) Switch on and then spray the powder or magnetic suspension to the testing area, and maintain 2 ~ 3s;

4) Release the switch and remove the yoke, check the specimen;

5) Change a new area and test again, repeat Steps 3) and 4).

AC crack detection (DMY12-220 DMY220):

1) Connect the power cable to the 220V power socket(make sure the socket come with ground wire and well connected);

2) While testing, do the same as above steps 3) and 4).

Model		DMY12-220	DMY12	DMY220
Power supply mode		AC-DC	DC	AC
Power Supply		220V50Hz–12V	–12V	220V50Hz
Charging Power		220V 50Hz	220V 50Hz
Battery		MF12—7.2H	MF12—7.2H
Working Current		AC1.4A/DC1.7A	DC1.7A	AC1.4A
Charging Time		8-15h	8-15h
Working Hours		Over 6 Hours	Over 6 Hours
Working time gap		One second
Magnetization Pole Distance		50-200mm	50-200mm	50-200mm
Elevating Force	A C	>5.5kg		>5.5kg
Elevating Force	D C	>25kg	>25kg
Weight	Yoke	3.2kg	3.2kg	3.2 kg
Weight	Battery Box	2.9kg	2.9kg
Dimension(㎜)	Yoke	208×52×146	208×52×146	208×52×146
	Battery Box	160×100×70	160×100×70
	Charger	80×60×40	80×60×40

Model	DMY12-220	DMY12	DMY220
Power supply mode	AC-DC	DC	AC
Yoke (Probe)	1Pcs.	1Pcs.	1Pcs.
Battery Box	1Pcs.	1Pcs.
Battery	1Pcs.	1Pcs.
Charger	1Pcs.	1Pcs.
Power Cable	1Pcs.		1Pcs.
Surrounding Cable	1Pcs.	1Pcs.
User’s Manual	1Pcs.	1Pcs.	1Pcs.
Quality Certificate	1Pcs.	1Pcs.	1Pcs.
