Product : Manual Heighten Rockwell Hardness Tester
Model : HR-150AH
Country of Origin : CHINA
Brand : DTEC
Quality Certified : GB/T230.1/2,ISO 6508-2,ASTM E18,JJG112
Delivery Time : 5 days
Packing Weight : 160KG
Dimension : 65x40x110cm(LxWxH)
Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS,Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
 |
- Product Intro
- Feature
- Specification
- Packing List

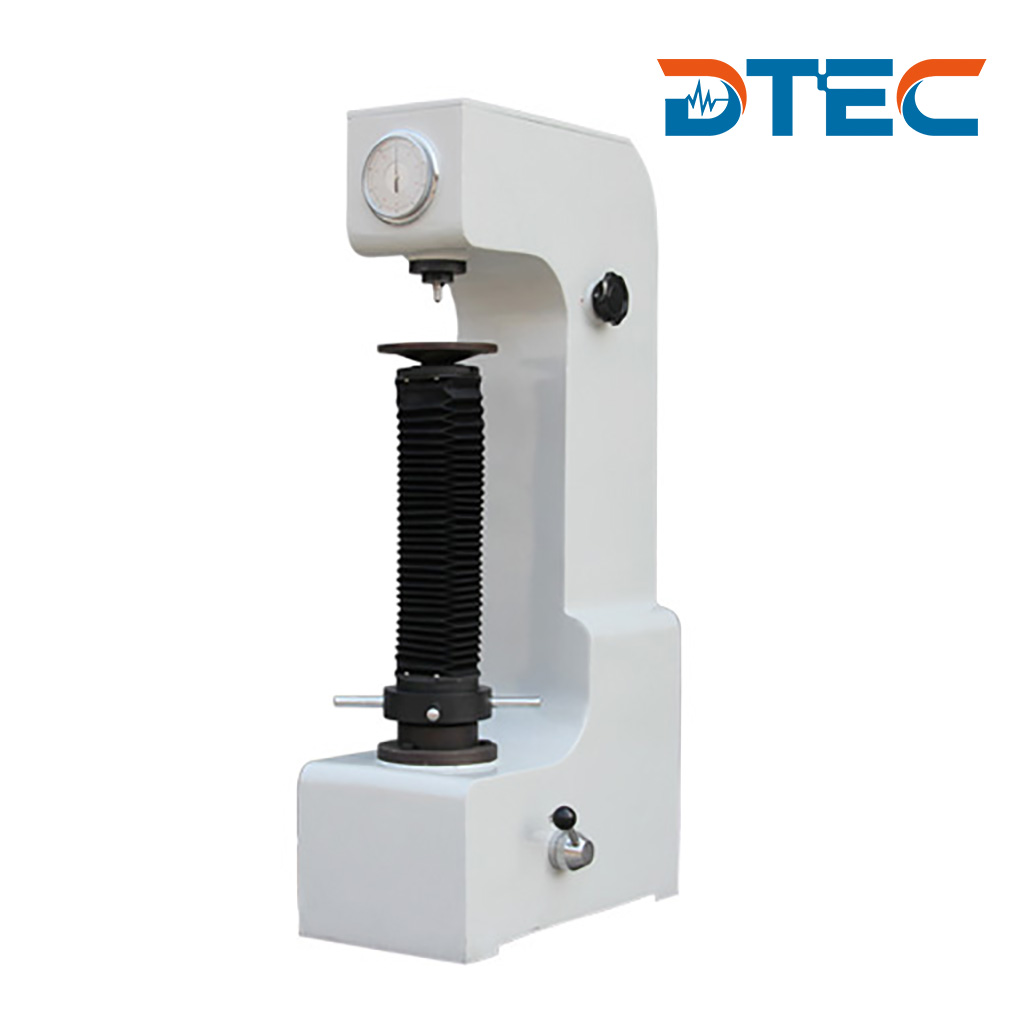

HR-150AH Manual Heighten Rockwell Hardness Tester is an extend model based on manual rockwell hardness tester model HR-150A,which is heighten in size,enable it to test specimans with larger size and more complicated shape.
Similar as HR-150A，it works without electrical power supply,and with simple designed appearance,which is very easy to operate,as well as economical and practical performace and wide using scope.
Using Scopes:
►Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metalt and Non-metallic Material with larger size and more complicated shape.
►Larger Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.
Similar as HR-150A，it works without electrical power supply,and with simple designed appearance,which is very easy to operate,as well as economical and practical performace and wide using scope.
Using Scopes:
►Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metalt and Non-metallic Material with larger size and more complicated shape.
►Larger Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.
►Suitable to test specimans with larger size and more complicated shape.
►High testing efficiency,High accuracy,durable and reliable usage;
►Direct dial readings,with scales of HRA，HRB and HRC；
►Suitable for optional Rockwell scales:HRD、HRE、HRF、HRG、HRH、HRK;
►Mechnical and manual testing mode,easy and simple operation,without electrical power supply;
►Quality certified with GB/T230.1/.2 Natioanal Standard,ISO 6508-2,ASTM E18,JJG112 verification regulation.
►High testing efficiency,High accuracy,durable and reliable usage;
►Direct dial readings,with scales of HRA，HRB and HRC；
►Suitable for optional Rockwell scales:HRD、HRE、HRF、HRG、HRH、HRK;
►Mechnical and manual testing mode,easy and simple operation,without electrical power supply;
►Quality certified with GB/T230.1/.2 Natioanal Standard,ISO 6508-2,ASTM E18,JJG112 verification regulation.
|
Model
|
HR-150AH
|
|
Initial Testing Force
|
10kgf(98.07N)
|
|
Testing Force
|
60kgf(588N) 100kgf(980N) 150kgf(1471N)
|
|
Rockwell Scale
|
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK |
|
Testing Range
|
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 |
|
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
|
|
DataDisplay mode
|

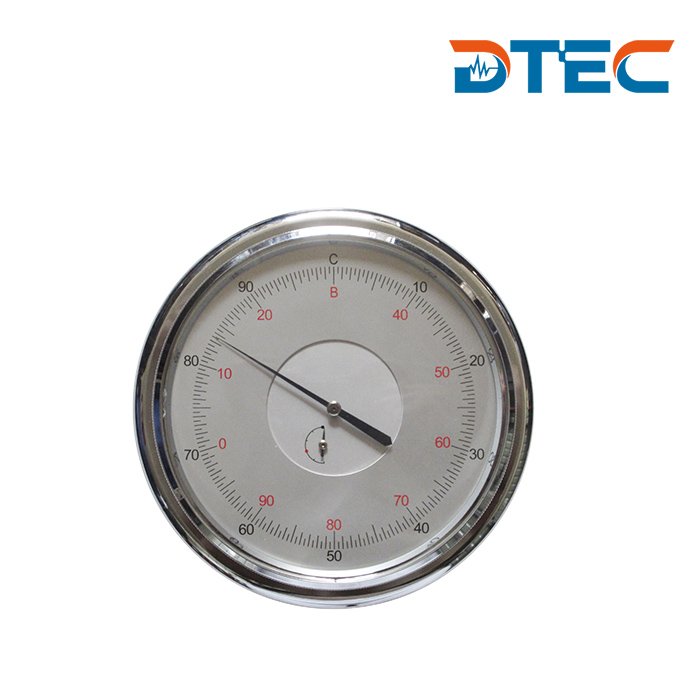

Dial
|
|
Carried Standard
|
GB/T230.1/.2 Natioanal Standard,ISO 6508-2,ASTM E18,JJG112. |
|
Max Height of Speciment |
400mm
|
|
Max depth of speciment |
160mm
|
|
Dimension (cm)
|
65x40x110cm(LxWxH)
|
|
Packing Weight
|
160KG
|
Standard Packing Accesoories:
|
Items |
Qty |
Items |
Qty |
|
Diamond Rockwell Indentor |
1 |
Dia.1.5875mm ball indentor |
1 |
|
Block （HRC high and low value 2pcs each、HRB 1pcs） |
5 |

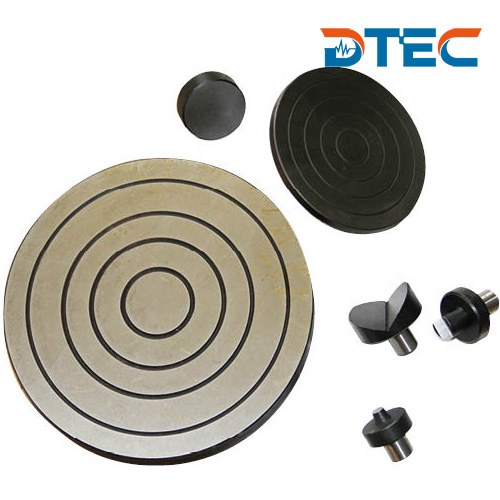

Big,Medium and V shaped Testing Platform |
1 each |
|
Weight（A、B、C） |
1 each |
Dustproof Cover |
1 |
|
User’s Manual Book |
1 |
Quality Certificate |
1 |
