Product : W-20A Webster Hardness Tester
Model : W-20A
Country of Origin : CHINA
Brand : DTEC
Quality Certified : YS/T420-2004,ASTM B647-84(2000)
Delivery Time : 3 days
Packing Weight : 2KG
Dimension : 31x22x10cm(LxWxH)
Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent
Payment Term : TT100%/Private Bank Account/Credit Card/Paypal/Western Union
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  • Product Intro
  • Feature
  • Specification
  • Packing List

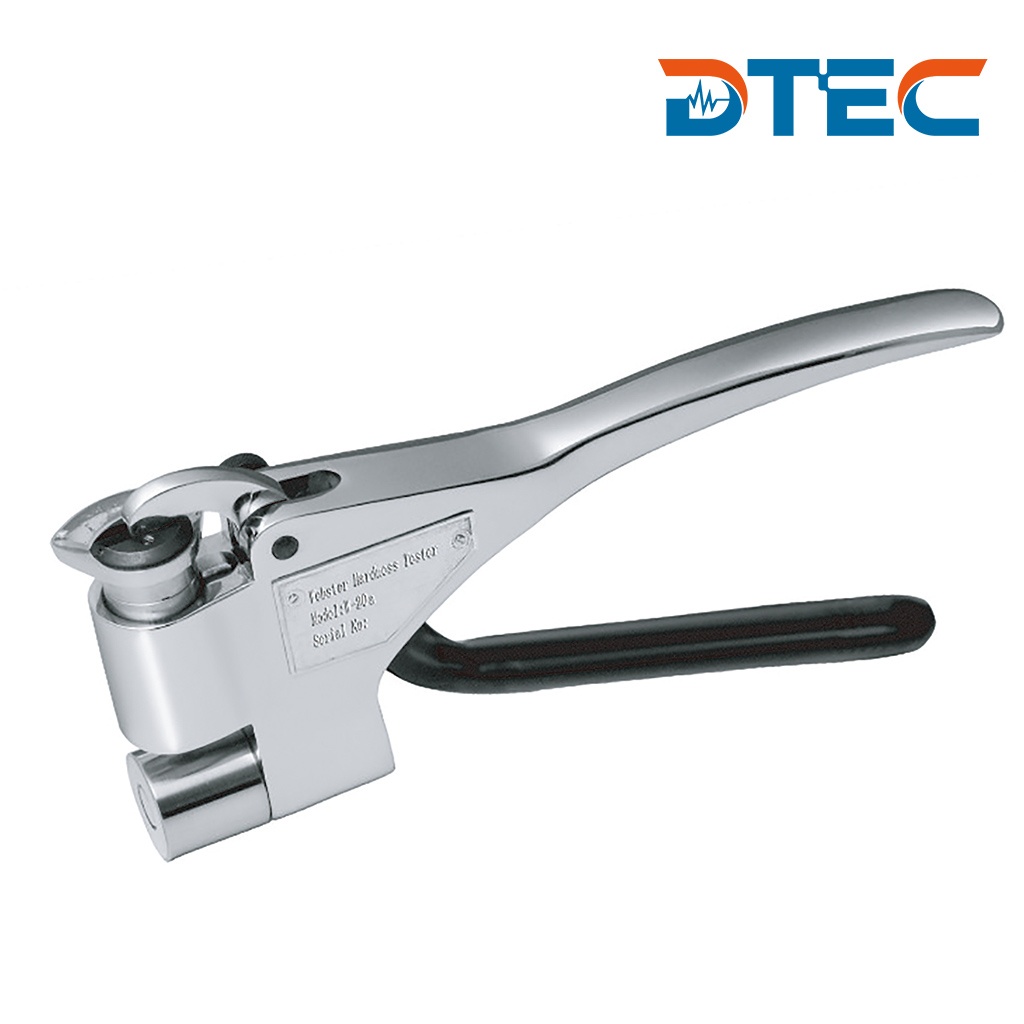

Webster Hardness Tester is an instrument that can promptly on-site test the hardness of aluminum alloy material, including section bar,tubes,plates,aluminum parts,and hardness of other soft mental. It is such an instrument convenient in usage, with a simple “clamp” and direct result-reading, that it always receives good feedback of high efficiency and strong stability.
Webster Hardness Tester is the best choice for mechanical testing on aluminum alloy material, it is conform to Chinese nonferrous standard YS/T420-2004 and US standard ASTM B647-84(2000).




Using Scope:
Especially suitable in production site,sales site or construction site for quickly testing on bulk products with non-destructive quality inspection piece by piece.
Besides aluminum alloy material, it is also suitable to test red copper, brass, soft copper etc.

Application:

W-20: General Model, suitable for common aluminum materials;

W-20A:Suitable for aluminum materials with thickness 13mm;

W-20B:Suitable for aluminum tube with inner dia.≥6mm;

W-B75:Suitable for brass tube, brass strip;

W-BB75: Suitable for red copper tube, red copper strip;

W-B92:Suitable for soft stainless steel, cold-rolled strip.

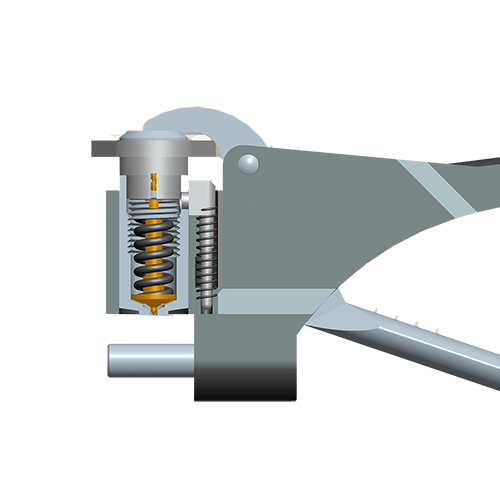

Indenter: Re-engineerred with advanced material and new production technology manufactured, higher hardness, long service life, good interchangeability;

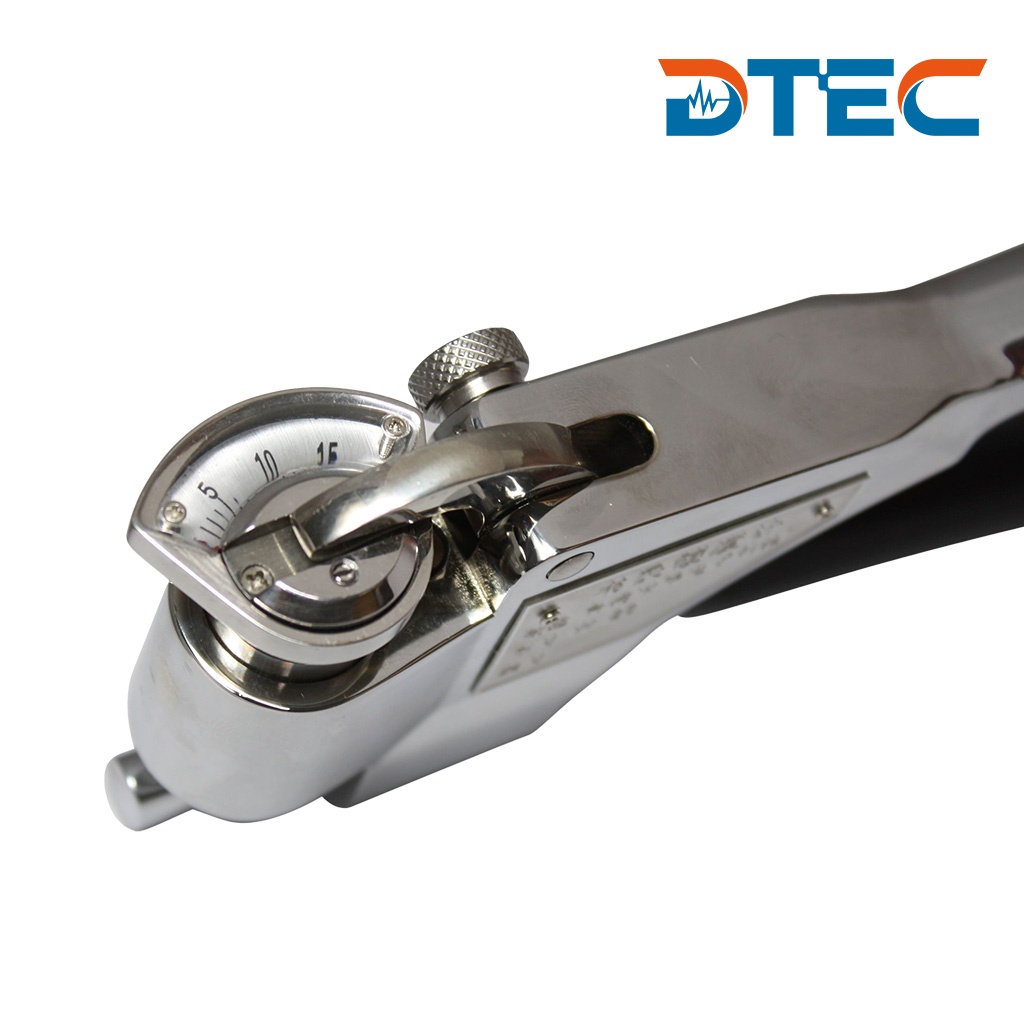

Indicator Hand: High strength indicator hand, less likely to be bent by long-term using or mis-operation;
Dial Glass: High strength, high toughness, uneasy to be broken or scratched;
Handle: Forged aluminum alloy handle with fine anodized finishing, high resistance to abraision and stain;
Hardness Blocks: Tested by standard Rockwell hardness tester, attached with test report;
Good Stability:  Stable full scale point, stable calibration point, indicator never glides;
Easy Conversion: Results can be converted to Vickers, Rockwell and Brinell.


Model
W-20A
Testing Range

0 ~ 20 HW (equivalent to 20 ~ 110 HRE,58-131HRV)

Resolution

0.5 HW (5 ~ 17 HW)

Repeatability

0.5 HW (5 ~ 17 HW)

Application
Aluminum Alloy
Suitable Specimen Size
Thickness 0.4-13 Inner Dia. >10mm
Dimension
31x22x10cm(LxWxH)
Packing Weight
2.0KG

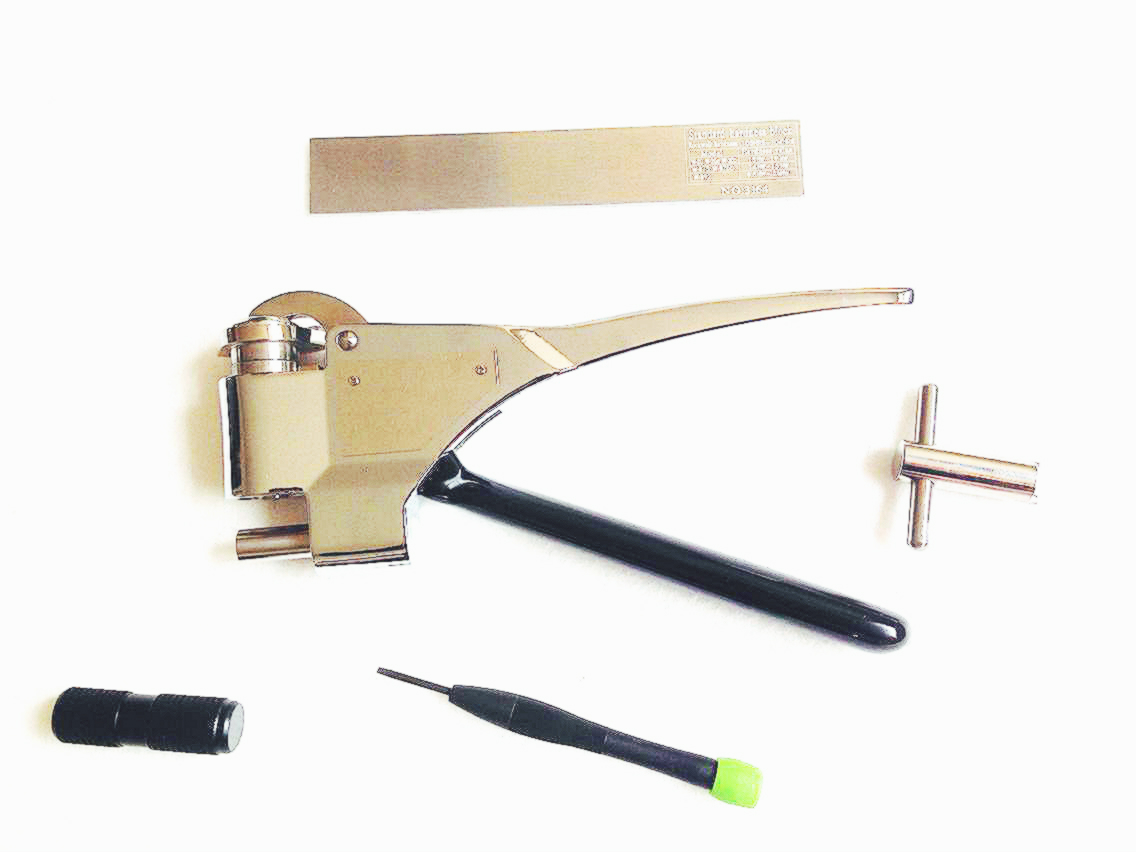

Standard Packing Accessories:

Items
Qty.
Unit Tester
1
Standard Hardness Block
1
Spare Indenter
1
Calibration Wrench
1
Little Screwdriver
1

User’s Manual Book, Quality Certificate, Warranty Card

1 each
Case
1


Optional Accessories:
Items
Indenter
Hardness Block
Dial Glass
