Products > Measuring Equipment > Coating Thickness Gauge > Pocket-size Coating Thickness Gauge

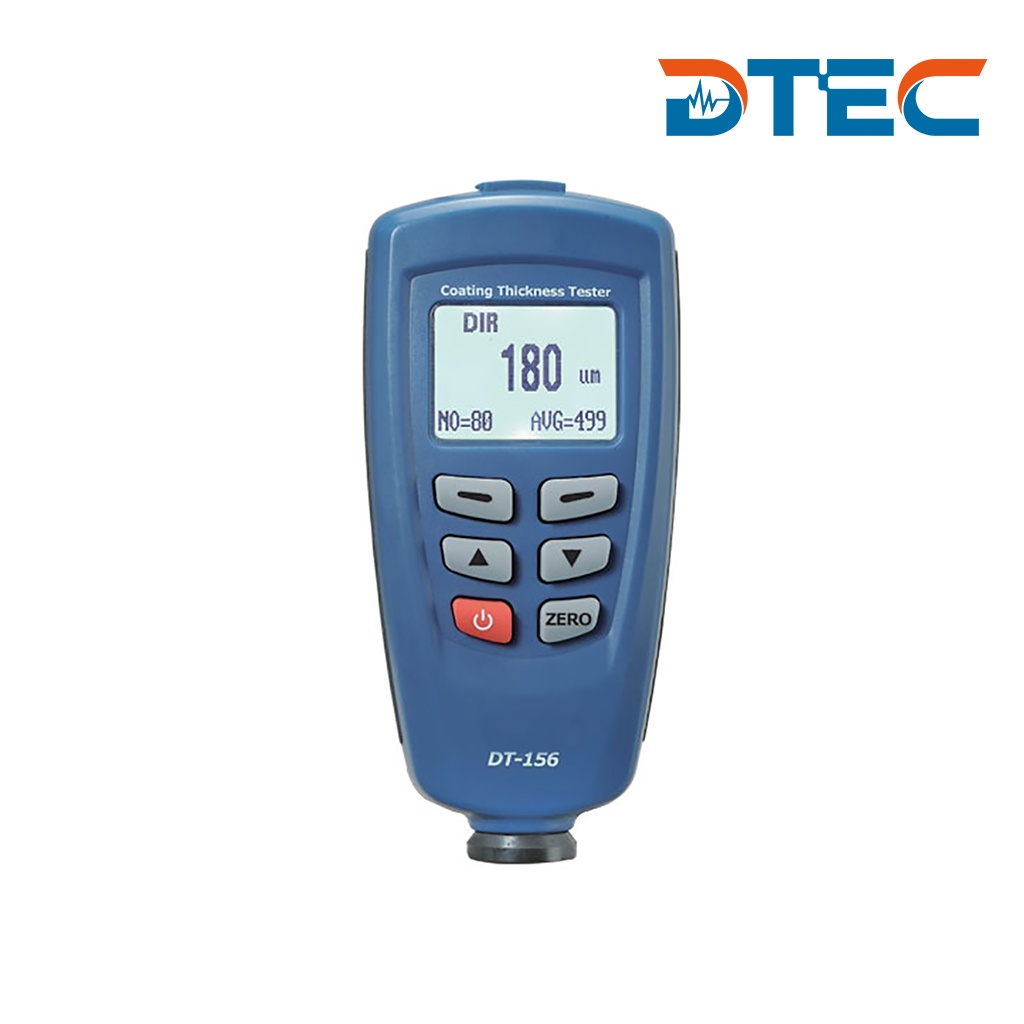

Product : Pocket-size Coating Thickness Gauge

Model : DT-156

Country of Origin : CHINA

Brand : DTEC

Quality Certified : CE,ISO,Ghost

Delivery Time : 3 days

Packing Weight : 1KG

Dimension : 25x18x8cm(LxWxH)

Package Type : Maker's Standard Export Carton Box

Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent

Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union

Enlarge Image

Back

←[Previous Product]

Product Intro
Feature
Specification
Packing List

Model:DT-156

Structure:

Using Scopes:

►Non-magnetic coatings (e.g. paint, zinc) on steel;
►Insulating coatings (e.g. paint) on no-ferrous metals;
►No-ferrous metals coatings on insulating substrates;
►Menu operation system;
►Two measuring mode: CONTINUE and SINGLE mode;
►Two working Mode: DIRECT and GROUP mode;
►Statistic Display: AVG, MAX, MIN, NO., S.DEV;
►One point calibrating, two points calibrating and basic calibrating easily;
►Memory for 400 readings (80 DIRECT and 320 GROUP readings);
►Delete single readings and all group readings easily;
►High alarm and Low alarm for all working mode;
►Low battery, error indication;
►USB interface for PC software (windows 98/2000/XP/vista).

Sensor probe	F	N
Working principle	Magnetic induction	Eddy current principle
Measuring range	0~1250um 0~49.21mils	0~1250um 0~49.21mils
Guaranteed tolerance (of reading)	0~850um(±3%+1)um 850~1250um(±5%) 0~33.46mils(±3%+0.039mils) 33.46~49.21um(±5%)	0~850um(±3%+1.5) um 850~1250um(±5%) 0~33.46mils(±3%+0.059mils) 33.46~49.21um(±5%)
Low range Precision	0~50um(0.1um) 50~850um(1um) 850~1250um(0.01mm) 0~1.968mils(0.001mils) 1.968mils~33.46mils(0.01mils) 33.46~49.21mils(0.1mils)	0~50um(0.1um) 50~850um(1um) 850~1250um(0.01mm) 0~1.968mils(0.001mils) 1.968mils~33.46mils(0.01mils) 33.46~49.21mils(0.1mils)
Minimum curvature radius	1.5mm	3mm
Diameter of Minimum area	3mm	5mm
Basic critical thickness	0.5mm	0.3mm
Dimension (HxWxD)	25x18x8cm
Packing Weight	1KG

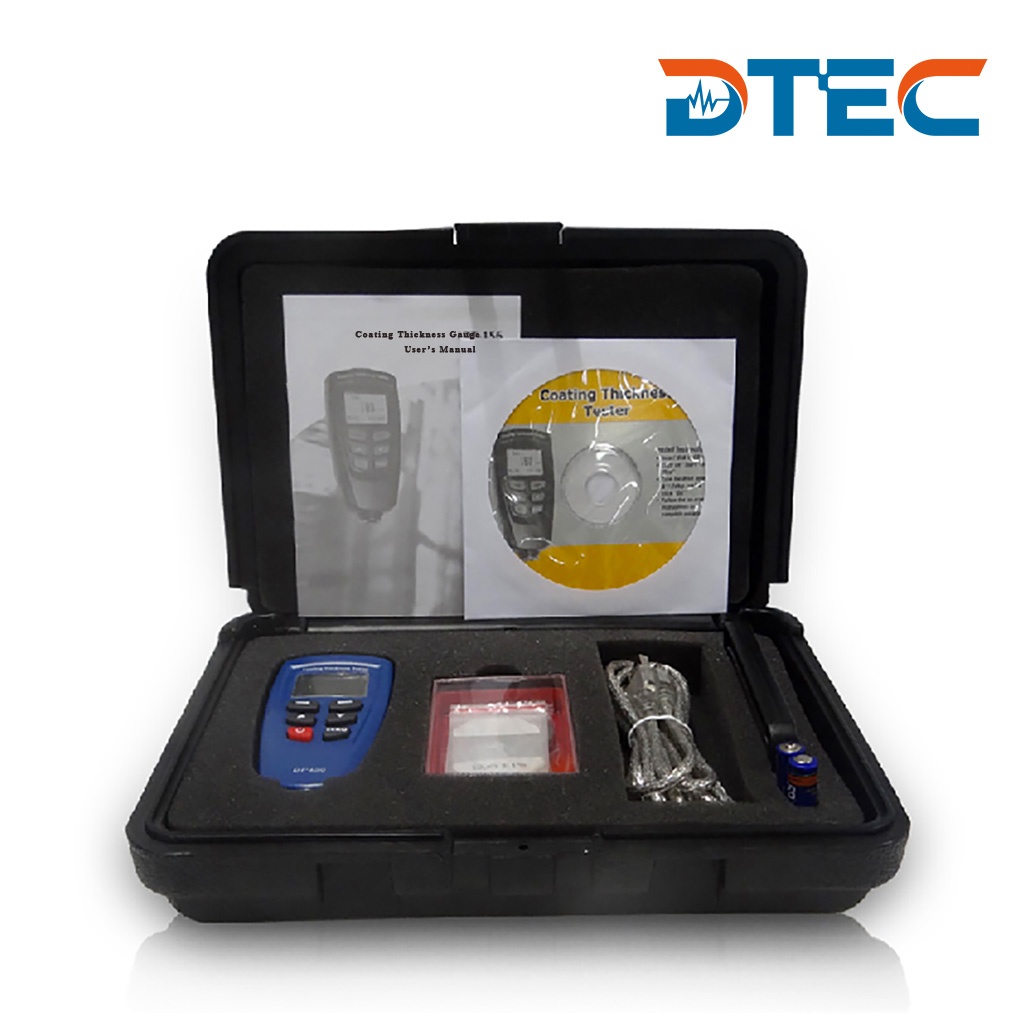

Standard Packing:

Items	Qty.
Unit Tester	1
“AAA” batteries	2
USB Connecting Cable	1
Data Pro Software	1
Calibration Zero Plate Iron	1
Calibration Zero Plate Aluminum	1
Precision Standard foils	5
Instrument Case	1

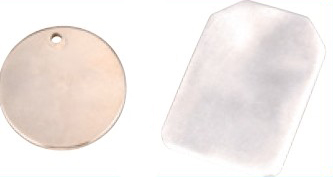

Calibration Zero Plate(Iron and Aluminum)

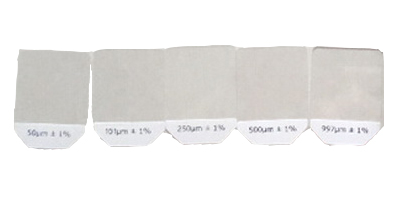

Coating Foils
