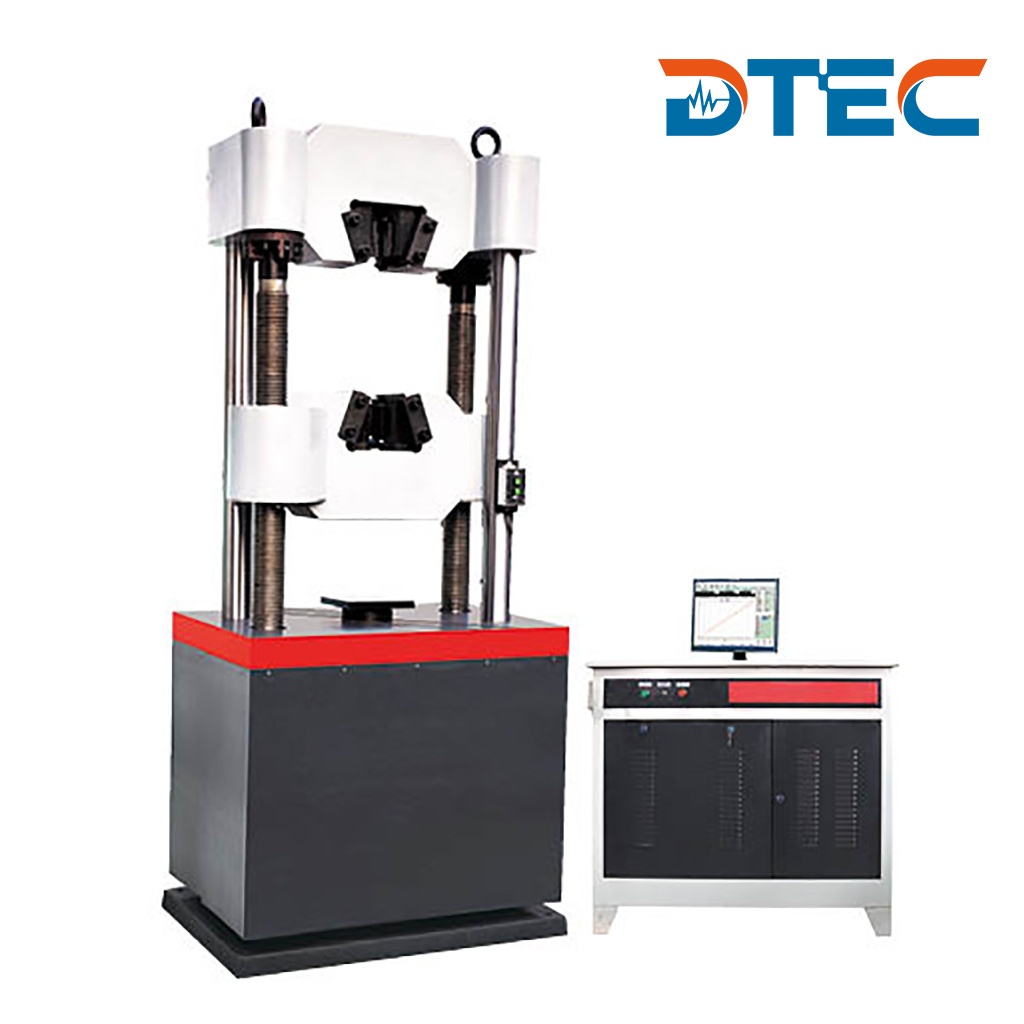

Product : Microcomputer Screen Display Hydraulic Universal Testing Machine
Model : DEW-300D/600D/1000D
Country of Origin : CHINA
Brand : DTEC
Quality Certified : GB/T2611,ISO,ASTM,DIN
Delivery Time : 10 working days
Packing Weight : 1900-3500KG
Dimension : 950x800x2300cm(LxWxH) Approximately
Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
|
- Product Intro
- Feature
- Specification
- Packing List

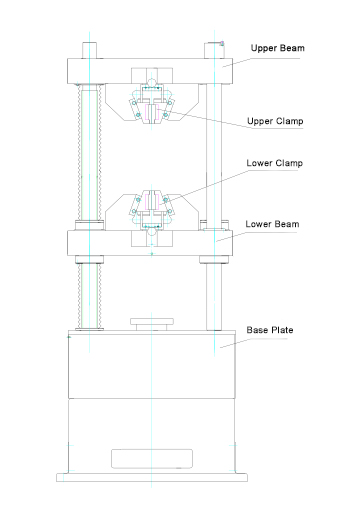

Main Engine:
The main engine of Hydraulic Universal Testing Machine is the one with underneath oil cylinder, which is clearance seal type (the bottom clearance is sealed by oil slick, which keep it from deformation,wearing and leaking after long time’s work).

►Full display on the microcomputer screen all testing data and parameters, such as testing force, displacement, deformation, stress and strain etc.;
►Underneath hydraulic oil cylinder. Power for adjusting the test space and the transmission are mounted at the bottom of the testing machine, which provides stable transmission. Upper and lower jig holds are fully-open structures. Specimens can be clamped conveniently via the automatic hydraulic clamping system with good stability;
►Clearance adjusting mechanism allows the movable beam in the most reasonable operating position and strained condition;
►With relevant Optional attachments, it can achieve tests on samples such as reinforced bars, steel strand, cable, fasteners and concrete;
►The hydraulic clamping device can adjust the clamping speed independently (the inching clamping device can be configured according to the customer requirements);
►Loading sensors or oil pressure sensors can be selected independently, effectively improving the testing range and the force accuracy;
►The underneath structure of the oil cylinder can reduce the height of the main machine, lower the test center of gravity and reduce the damage of the rupture impact force to the machine;
►Photoelectric encoders can accurately measure the movement distance of the beam;
►The integrated oil source design makes the whole machine more compact and reasonable, reducing the floor area;
►Double control system of manual and automatic is provided and the operation mode can be selected independently;
►The built-in control card based on PCI technology reduces connection, improves the function of real-time control over the test and real-time acquisition and improves the stability of the product.
Series Models
|
DEW-D
|
|||
300D
|
600D
|
1000D
|
||
Max. Testing Force (KN)
|
300
|
600
|
1000
|
|
Measuring Range
|
4%-100%
|
|||
Relative Error on Indicated Values of Testing Force |
Better than ±1% of the indicated value
|
|||
Deformation Precision
|
±1% (or±0.5%)
|
|||
Tensile Space
|
550mm
|
600mm
|
600mm
|
|
Compression Space
|
≥500mm
|
|||
Clamping Dia. Of Round Specimens (mm)
|
Φ6-Φ26
|
Φ13-Φ40
|
Φ13-Φ60
|
|
Clamping Thickness Of Flat Specimens (mm)
|
0-15mm
|
0-30mm
|
0-40mm
|
|
Diameter of Shearing Specimens
|
10mm(Optional)
|
|||
Diameter of Upper and Lower Pressing Plate |
Φ120mm (Optional 204mmx204mm) |
|||
Maximum Distance Between Bending Fulcrums |
Optional
|
|||
Power of Oil Pump Motor
|
1.1KW
|
|||
Power of Beam Up-down Movable Motor |
0.75KW
|
|||
Deformation Testing Device |
Extensometer
|
|||
Weight (Approximate KG)
|
1900
|
2600
|
3500
|
|
Safety Protective Device
|
Software Protection and Mechanical Limit Protection |
|||
Clamp Type
|
Manual Clamping/Automatic Clamping |
No.
|
Items
|
Qty.
|
1
|
Main Unit (Clearance Seal Oil Cylinder)
|
1
|
2
|
Desktop Specialized Oil Source for Microcomputer Screen Displaying Type |
1 Set
|
3
|
Manual Valve for Oil-in and Oil-out |
Each 1
|
4
|
Dual Channel Program Control AMP
|
1 Set
|
5
|
High-Precision Oil Pressure Transducer |
1
|
6
|
High-precision photoelectric encoder |
1
|
7
|
Flat Jig (0-20mm)
|
1
|
8
|
Round Jig (26-40mm,40-60mm)
|
Each 1
|
9
|
Bending Accessories
|
1 Set
|
10
|
Extensometer (50/25)
|
1
|
11
|

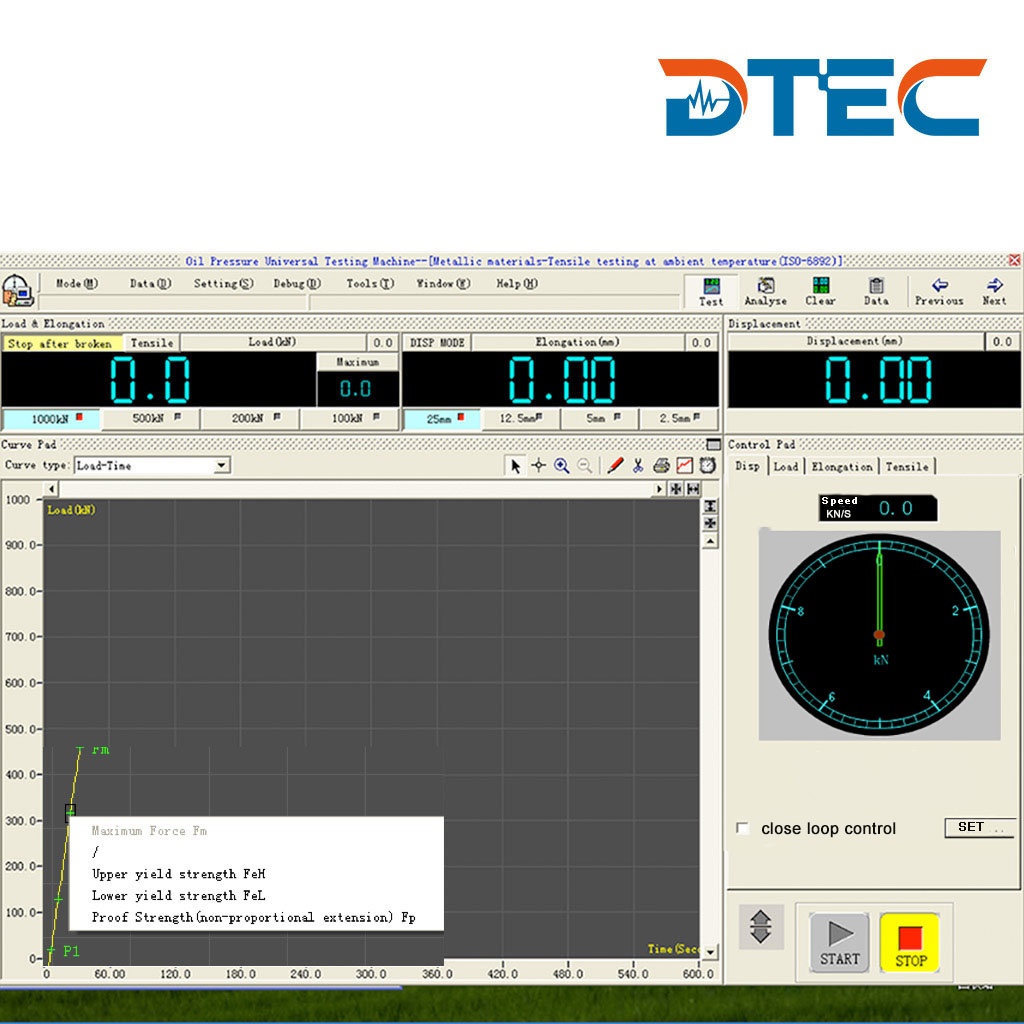

Data Pro Software System (Including general software for UTM displayer and its connecting system) |
1 Set
|
12
|
Manual Book, Quality Certificate
|
Each 1
|

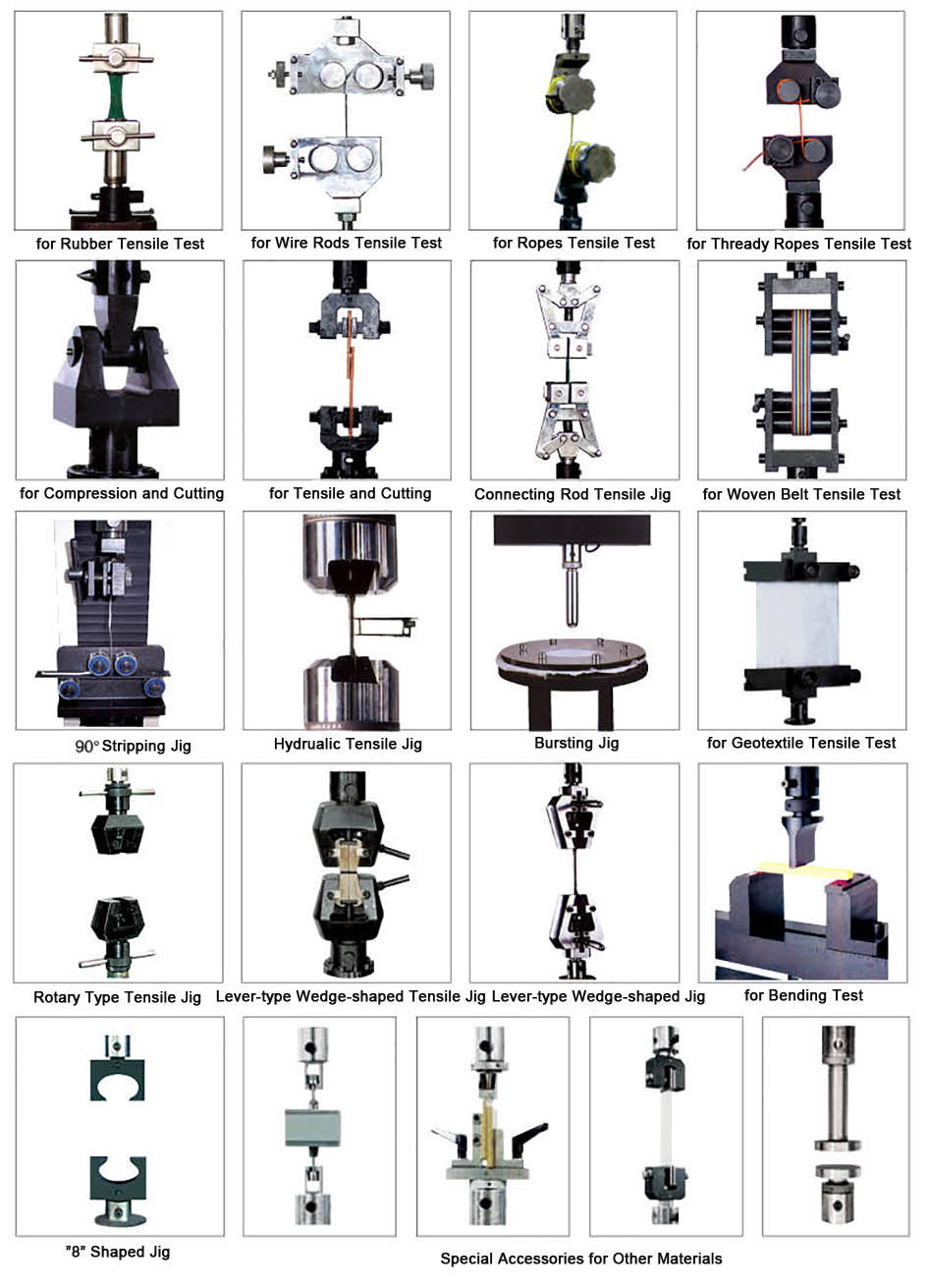

Optional Accessories:
