Product : Surface Roughness Tester
Model : DRT320
Country of Origin : CHINA
Brand : DTEC
Quality Certified : ISO,DIN,ANSI,JIS.
Delivery Time : 3 days
Packing Weight : 3.0 KG
Dimension : 38×25×10cm(LxWxH)
Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
|
- Product Intro
- Feature
- Specification
- Packing List
- 4 filtering modes: RC, PC-RC, GAUSS and D-P;
- 4 Compatible standards:ISO, DIN, ANSI and JIS;
- 2.7-inch large screen 128 × 64 dot matrix OLED display, no backlighting, no dead ends, can display full parameters, contour graphs and menu;
- Adopts the most mainstream for instrument controlling and data processing;
- With built-in storage,can store 20 groups complete testing data;
- With built-in SD card for expand memory;
- With built-in wireless remote module, support remote measurement;
- With built-in standard Bluetooth module, enable to connect with optional bluetooth printer without cable, all parameters and graphs can be printed out;

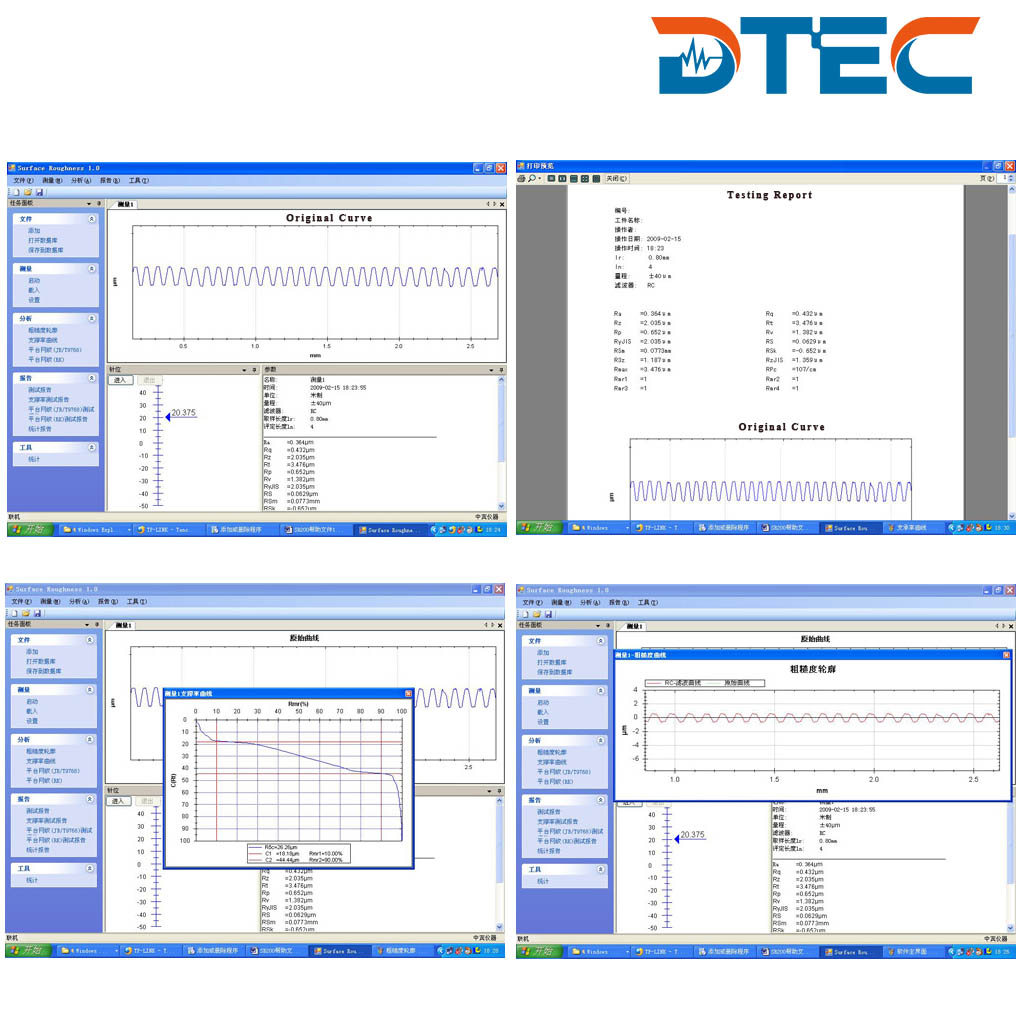

- With built-in micro USB port, can connect to PC for further data analysis with data pro software;
- Built-in lithium polymer rechargeable batteries and charging protection circuit;
- Automatic switch off, memory and various prompt instructions;
- Optional bluetooth mini-printer, analysis software, special probes and measurement platform
Measuring Range |
Z Axis(Vertical) |
320μm(Ra=80μm) |
|
X Axis(Horizontal) |
17.5mm |
||
Resolution |
Z Axis(Vertical) |
0.01μm/±20μm |
|
0.02μm/±40μm |
|||
0.04μm/±80μm |
|||
0.08μm/±160μm |
|||
Measurement item |
Parameters |
Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS),RSk,R3z,Rmax,RPc,Rmr, Rku,RΔa,RΔq,Rδc,Ry;Rk,Rpk,Rvk,Mr1,Mr2,A1,A2,V0 |
|
Standard |
ISO,ANSI,DIN,JIS |
||
Graphic |
Roughness profile,Material ratio curve,Direct profile |
||
Filter |
RC,PC-RC,Gauss,D-P |
||
Sampling length (lr) |
0.25,0.8,2.5mm |
||
Assessment length ln) |
Ln= lr×n n=1~5 |
||
Probe |
principle |
Differential inductance |
|
Stylus |
Natural Diamond, 90B cone angle, 5μm tip radius |
||
Force |
<4mN |
||
Skid |
Ruby,Longitudinal radius 40mm |
||
Traversing speed |
lr=0.25, Vt=0.15mm/s |
||
lr=0.8, Vt=0. 5mm/s |
|||
lr=2. 5, Vt=1mm/s |
|||
Return Vt=1mm/s |
|||
Accuracy |
Less than or equal to ±10% |
||
Repeatability |
Less than or equal to 6% |
||
Power supply |
Built-in Lithium ion battery,AC adapter 8.4V,800mA |
||
Dimension |
38×25×10cm(LxWxH) |
||
Packing Weight |
3KG |

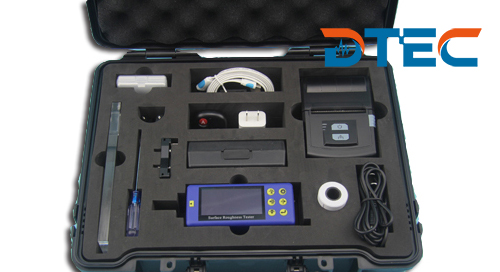

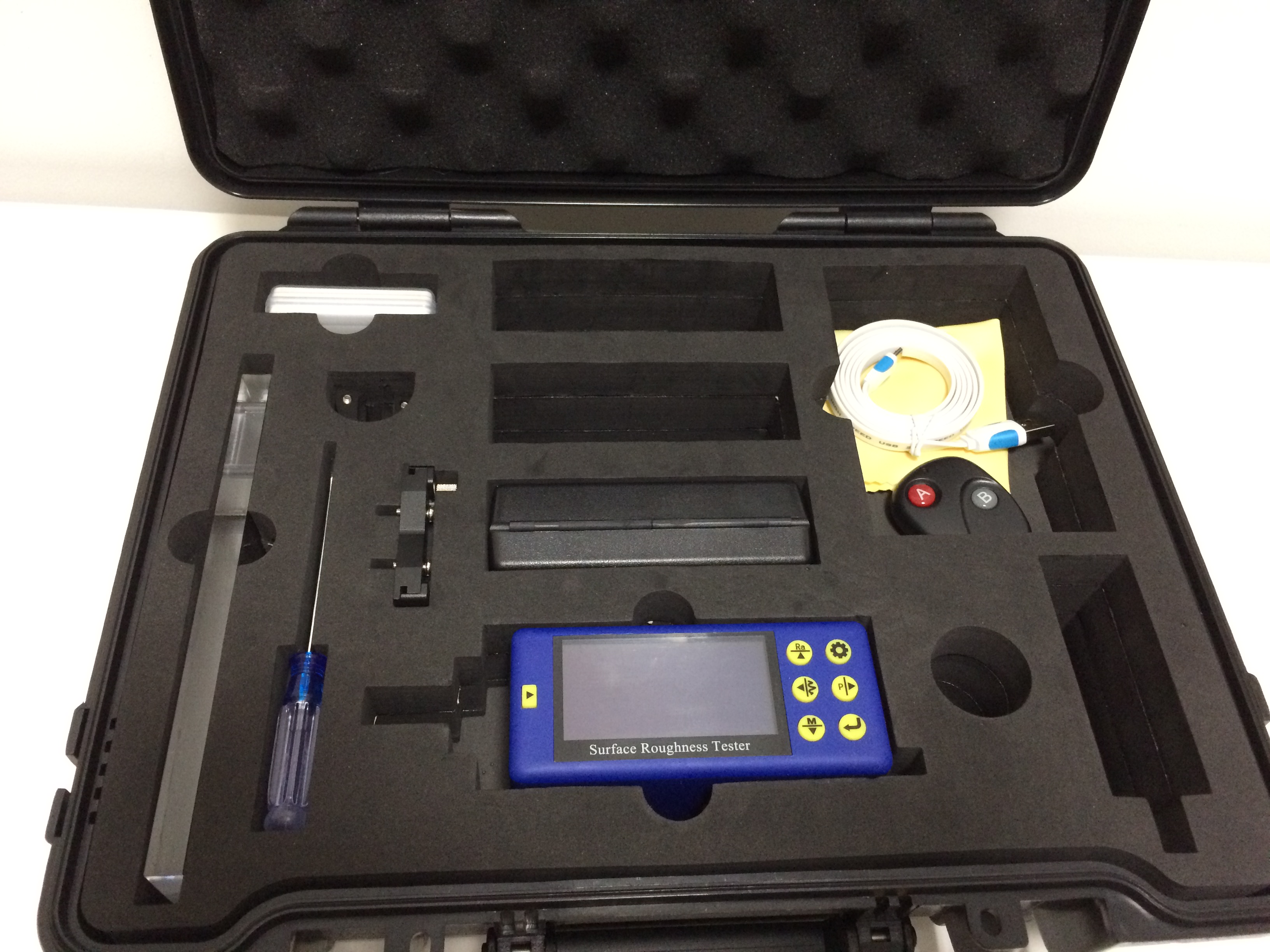

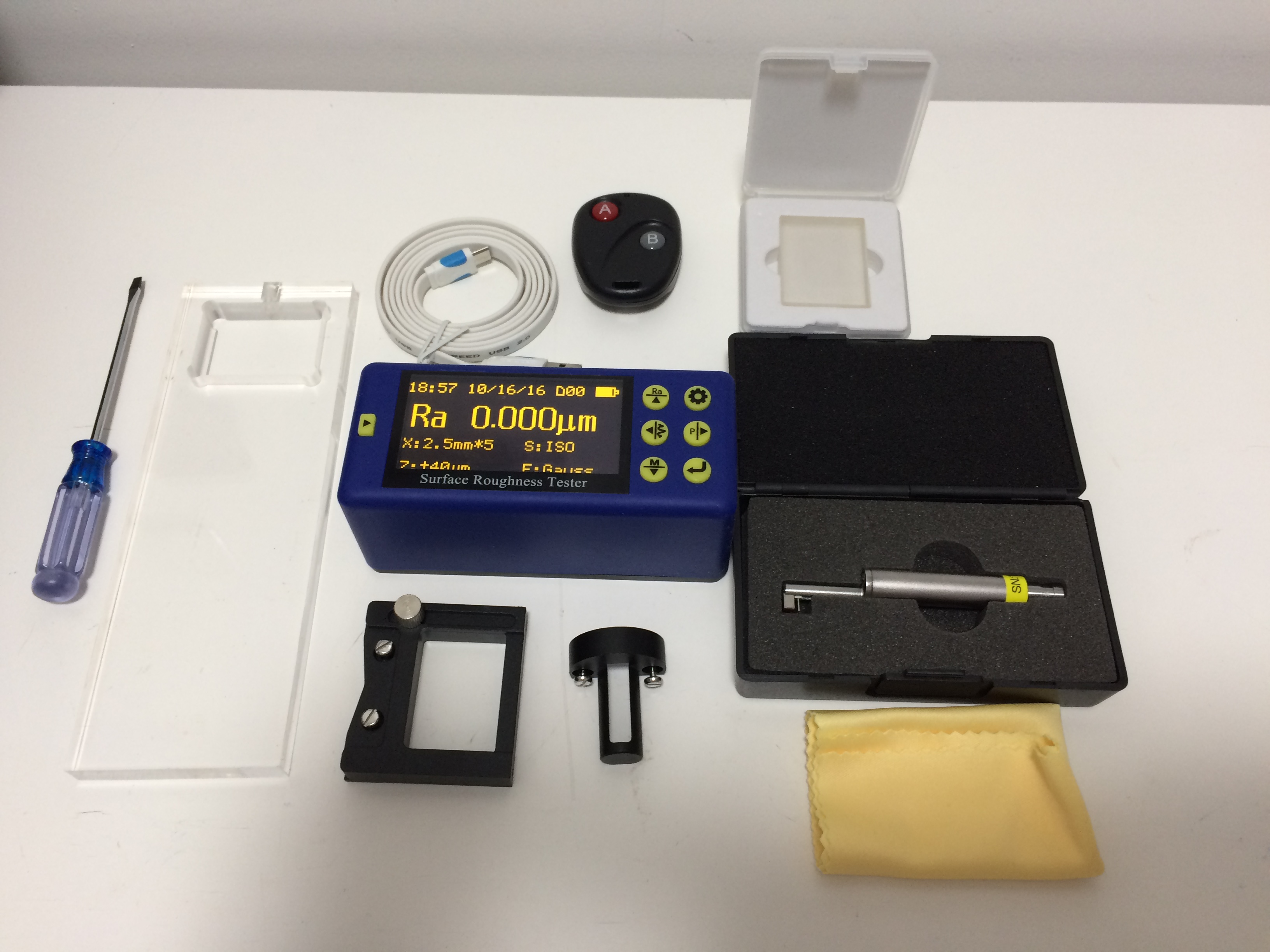

NO. |
Items |
Qty. |
1 |
Main Unit |
1 |
2 |
Standard Probe |
1 |
3 |
Screwdriver |
1 |
4 |
Calibration Specimen |
1 |
5 |
Specimen Plate |
1 |
6 |
Power Adapter |
1 |
7 |
Remote –controller |
1 |
8 |
User’s Manual |
1 |
9 |
Produce Certificate |
1 |
10 |
Guarantee Card |
1 |
11 |
Case |
1 |
Optional Accessories:
►Special Probes
Probe for Curved Surface
Probe for Deep Groove
Probe for Small Hole
Probe for Micro Hole
►Processing Software
►Mini Printer
►Fine Adjustment Platform & Stand
