Product : Microcomputer Control Electronic UTM (Normal Config Gate Type)
Model : DDW-10/20/50/100/200/300
Country of Origin : CHINA
Brand : DTEC
Quality Certified : GB/T2611,ISO,ASTM,DIN
Delivery Time : 7 working days
Packing Weight : 400-2000KG
Dimension : 900x800x2000cm(LxWxH) Approximately

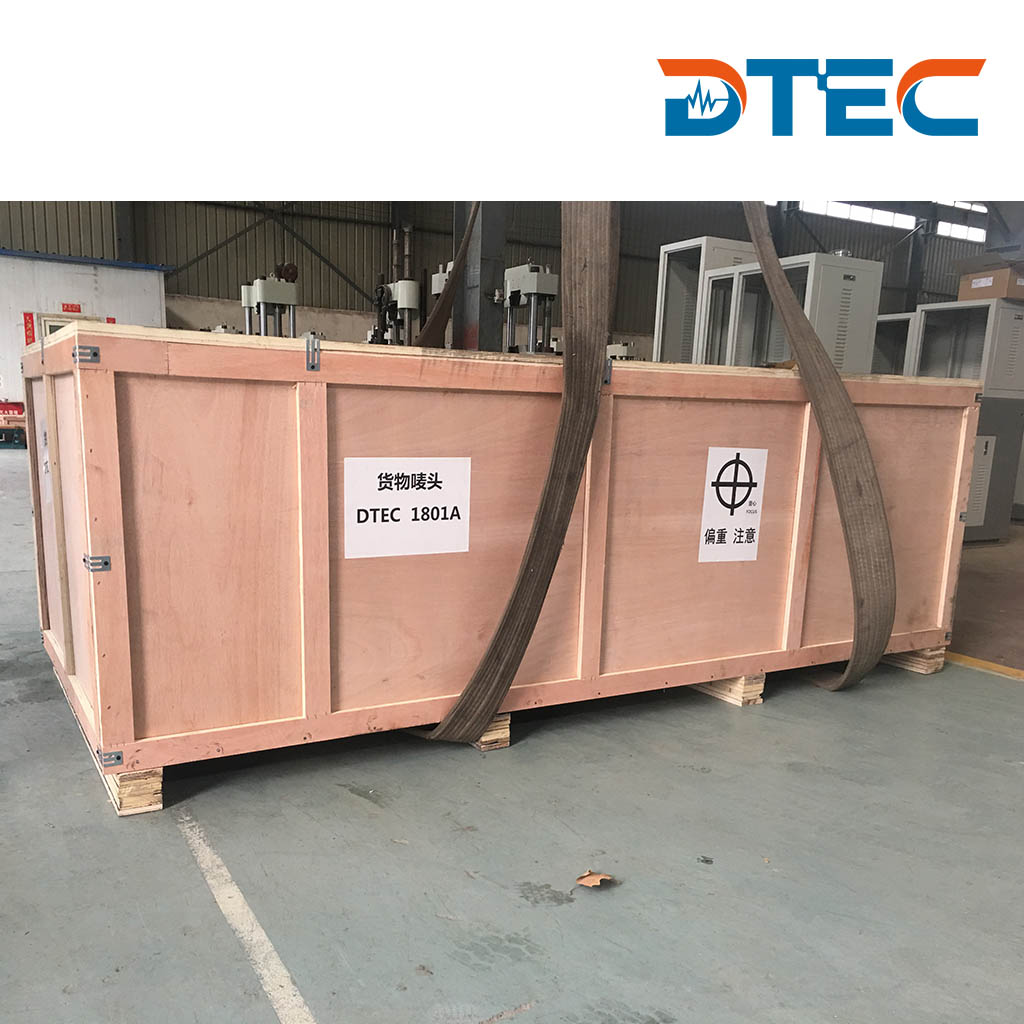

Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
|
- Product Intro
- Feature
- Specification
- Packing List

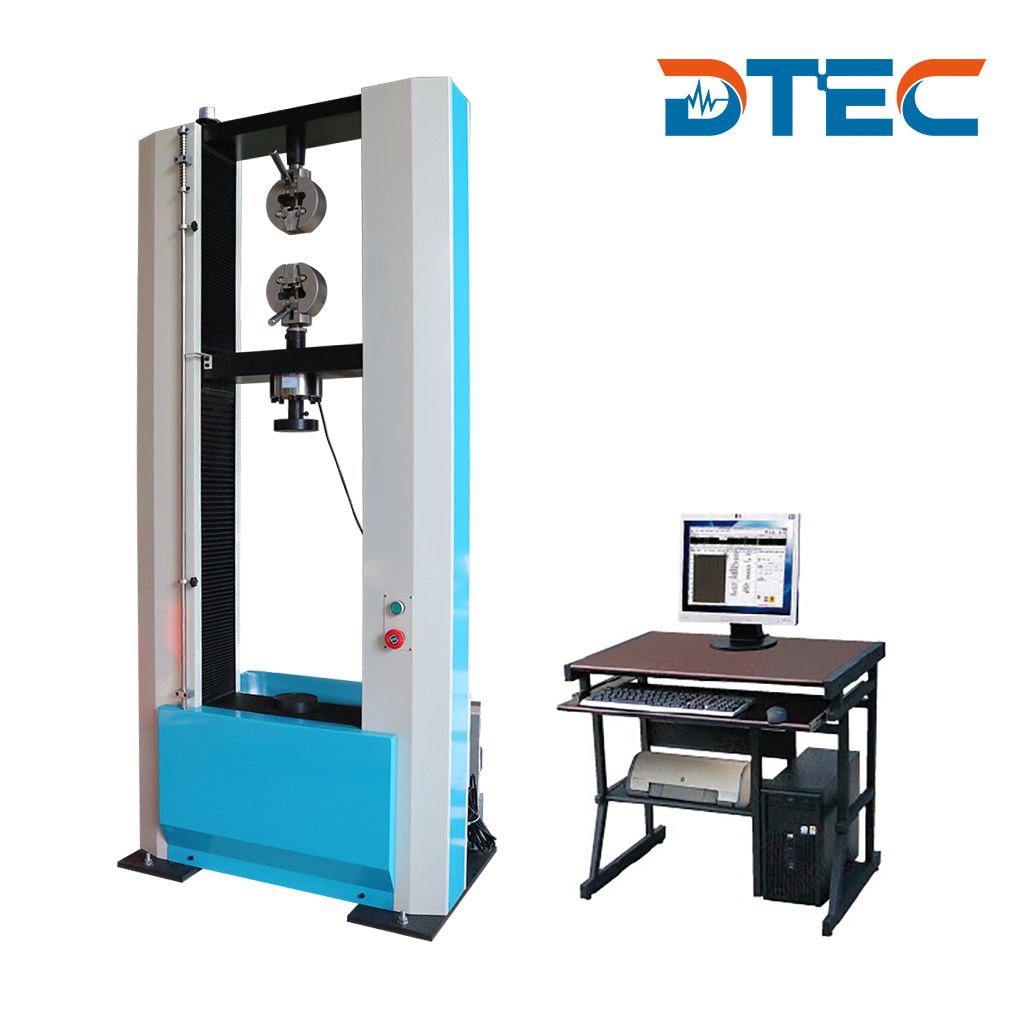

DDW Series Microcomputer Control Electronic Universal Testing Machine (Normal Configuration Gate Type) is equipped with Taiwan Servo Motor. The whole test is operated through PC with Data Pro Software, and all testing value and parameter can be displayed on software.
Using Scopes:
DDW Series Microcomputer Control Electronic Universal Testing Machine (Normal Configuration Gate Type) is applicable for tensile tests of materials with relatively small test force, such as rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests.

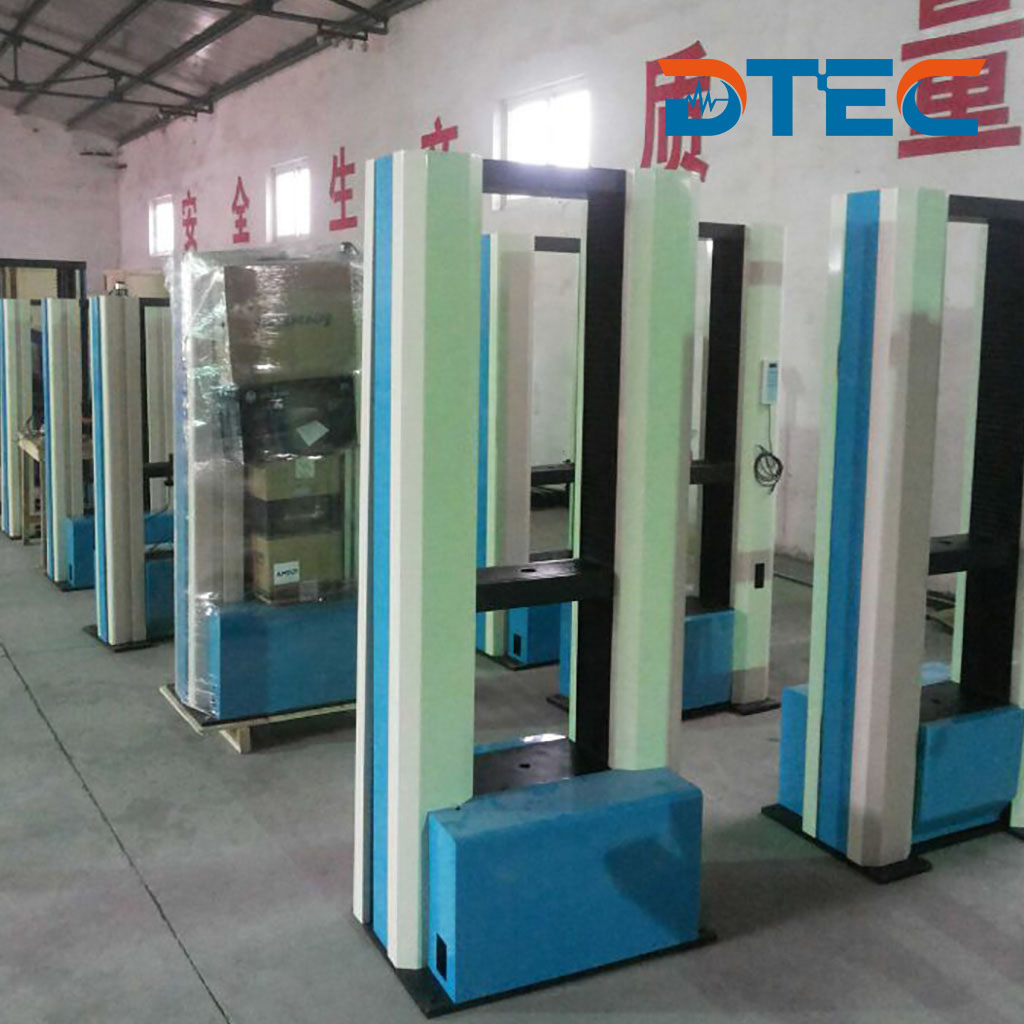

Equipment’s Main Structure:
The whole structure is formed by the upper beam, the middle beam, the lower beam and the bottom panel, with two pairs of ball screw-rod and a vertical column. The full-digital AC Servo motor drives the Reducer and the synchronic gear belt, so as to drive the two pairs of high-precision and seamless ball screw-rod, and to make the beam move up and down.
Using Scopes:
DDW Series Microcomputer Control Electronic Universal Testing Machine (Normal Configuration Gate Type) is applicable for tensile tests of materials with relatively small test force, such as rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests.
Equipment’s Main Structure:
The whole structure is formed by the upper beam, the middle beam, the lower beam and the bottom panel, with two pairs of ball screw-rod and a vertical column. The full-digital AC Servo motor drives the Reducer and the synchronic gear belt, so as to drive the two pairs of high-precision and seamless ball screw-rod, and to make the beam move up and down.
►High Grade Servo Motor:Equipped with top grade PANASONIC Servo Motor, better performance in testing range, accuracy of test force; and has better capacity in deformation displaying error, deformation accuracy,and displacement precision, etc.;
►Machine Framework: High-precision and seamless ball screw, which improves transmission efficiency and displacement precision; fixing the upper beam and working table with high-intensive polished rod, which constitute a highly rigid frame structure;
►Displacement Measuring Device: High-precision photoelectric encoder, with
relative precision up to ± 0.5%;

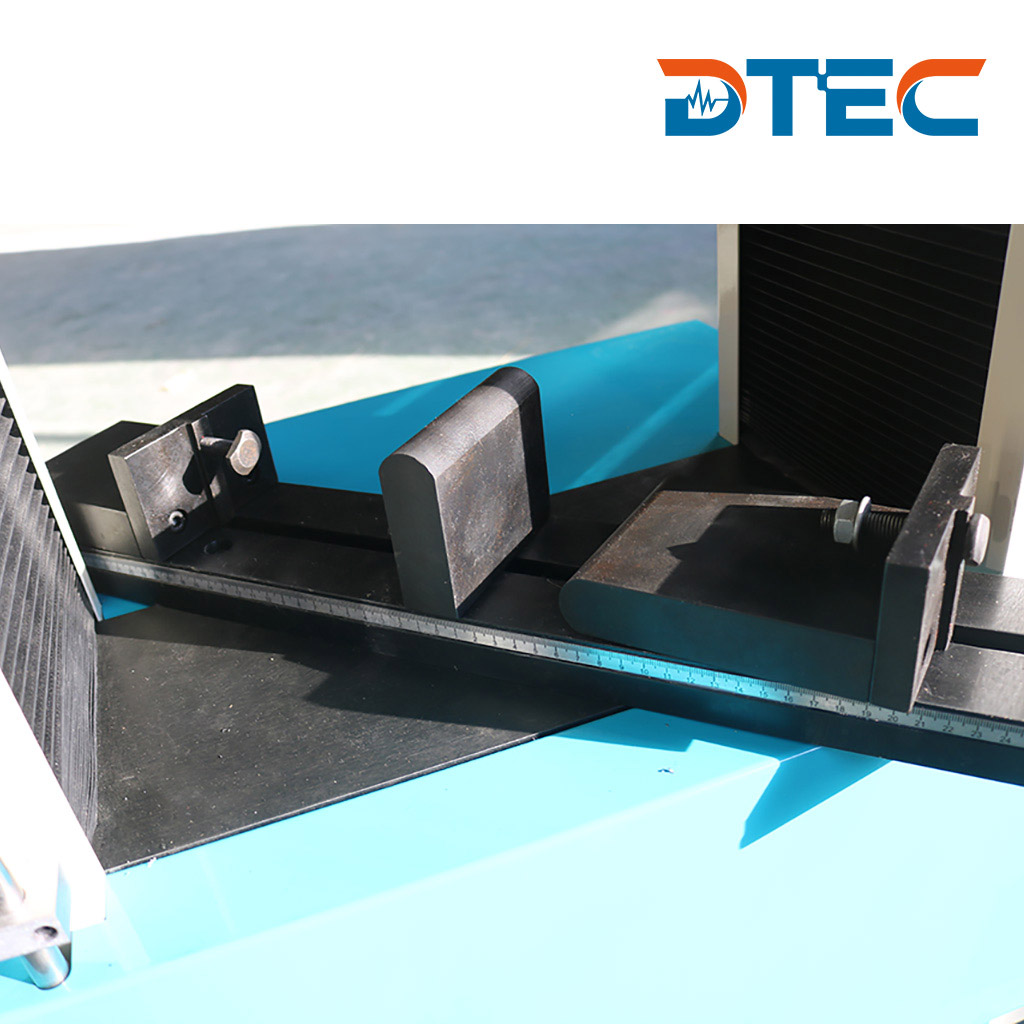

►Testing Accessories:Various optional testing accessories, meet all your measurement requirement;
►Force Measurement:High-precision and high stability Spoke strain sensor and high-precision measuring amplification system ensures high-precision test force.
(Multiple sensors can be used to realize a broad range of test forces according to users’ requirements);
►Limit Switch:The Equipment has a limit protection for auto-stop;
►Data Pro Software: With brand computer to control the software operating system. With the characteristics of high speed, mild interface and easy operation, it can meet measurement needs of different materials. With more than one hundred of test standards, it can satisfy the requirements of international standards, national standards and industry standards;
►Auto-calibration: The system is able to automatically achieve the calibration displayed standard values;
►Full Displaying: Real-time display on computer test force, peak value, displacement, speed, status, etc;
►Breaking Judgment: when the specimen is broken, the movable beam will automatically stop the test;
►Limit Protection: two protection functions of mechanical and control limit protections.
►Machine Framework: High-precision and seamless ball screw, which improves transmission efficiency and displacement precision; fixing the upper beam and working table with high-intensive polished rod, which constitute a highly rigid frame structure;
►Displacement Measuring Device: High-precision photoelectric encoder, with
relative precision up to ± 0.5%;
►Testing Accessories:Various optional testing accessories, meet all your measurement requirement;
►Force Measurement:High-precision and high stability Spoke strain sensor and high-precision measuring amplification system ensures high-precision test force.
(Multiple sensors can be used to realize a broad range of test forces according to users’ requirements);
►Limit Switch:The Equipment has a limit protection for auto-stop;
►Data Pro Software: With brand computer to control the software operating system. With the characteristics of high speed, mild interface and easy operation, it can meet measurement needs of different materials. With more than one hundred of test standards, it can satisfy the requirements of international standards, national standards and industry standards;
►Auto-calibration: The system is able to automatically achieve the calibration displayed standard values;
►Full Displaying: Real-time display on computer test force, peak value, displacement, speed, status, etc;
►Breaking Judgment: when the specimen is broken, the movable beam will automatically stop the test;
►Limit Protection: two protection functions of mechanical and control limit protections.
Series Models
|
DDW
|
|||||||||
10
|
20
|
50
|
100
|
200
|
300
|
|||||
Structural Form
|
Gate Type
|
|||||||||
Max. Testing Force (KN)
|
10
|
20
|
50
|
100
|
200
|
300
|
||||
Operation Mode
|
Microcomputer Control (Full English Data Pro Software) |
|||||||||
Measuring Range
|
2%-100% of the maximum testing force (or optional 0.4%-100%) |
|||||||||
Relative Error on Indicated Values of Testing Force |
Better Than ±1% of the Indicated Value (0.5% for special need) |
|||||||||
Error on Deformation Display
|
±1% (Optional ±0.5%)
|
|||||||||
Min. Force Resolution
|
0.01N
|
|||||||||
Displacement Precision
|
±1% (±0.5% Optional)
|
|||||||||
Deformation Accuracy
|
Better than ±1% (±0.5% Optional)
|
|||||||||
Speed Governing Range
|
0.01-500mm/min
|
|||||||||
Testing Travelling Distance
|
﹥600 mm (can be customized according to needs)
|
|||||||||
Testing Space Adjusting Mechanism
|
AC Servo Motor, Drive by Synchronous Belt
|
|||||||||
Carried Standard
|
GB/T2611, ISO、ASTM、DIN
|
|||||||||
Protection Function
|
Overload Protection, Limit Protection |
|||||||||
Power Supply
|
220V
|
380V
|
||||||||
Weight (Approximate KG)
|
400
|
500
|
600
|
1300
|
2000
|
|||||
Operating Conditions
|
Ambient Temperature -35°C, Humidity 20% - 80% |
|||||||||
Clamp Type
|
Each One Piece of Standard Clamp for Tension Test and Compression Test (Optional Clamp If Needed;Special Clamp Can Also Be Customized for Customers) |
Standard Packing:

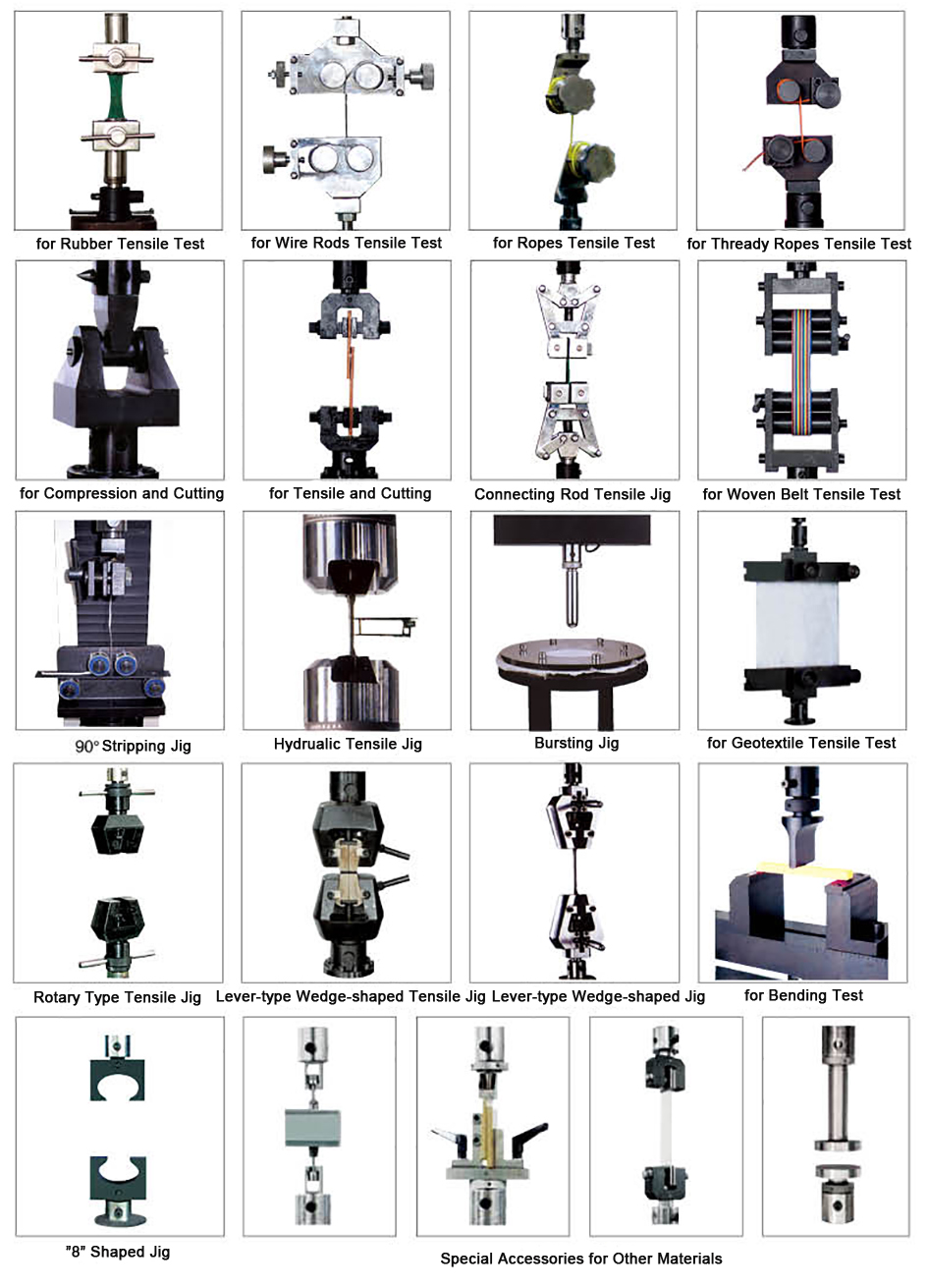

Optional Accessories:
Items
|
Qty.
|
Main Unit
|
1
|
Standard Double-clip Type Jig for Tension Test, Accessories for Compression Test |
One Pcs. Each
|
PANASONIC AC Servo Motor
|
1
|
High-precision Loading Transducer
|
1
|
Precision Reducer System | 1 |
High-precision photoelectric encoder
|
1
|
Desktop Computer
|
1
|
Inkjet Printer
|
1
|
Adjusted Full-digital Data Acquisition Board
|
1
|
Data Pro Software
|
1
|
Manual Book, Quality Certificate
|
One Pcs. Each
|
Optional Accessories:
