Products > Material Testing Equipment > Universal Testing Machine > Microcomputer Control Electronic UTM (Normal Config Single Arm)
Product : Microcomputer Control Electronic UTM (Normal Config Single Arm)
Model : DDW-05/1/2/5
Country of Origin : CHINA
Brand : DTEC
Quality Certified : GB/T2611,ISO,ASTM,DIN
Delivery Time : 7 working days
Packing Weight : 140 KG Approximately
Dimension : 900x800x2000cm(LxWxH) Approximately
Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  • Product Intro
  • Feature
  • Specification
  • Packing List

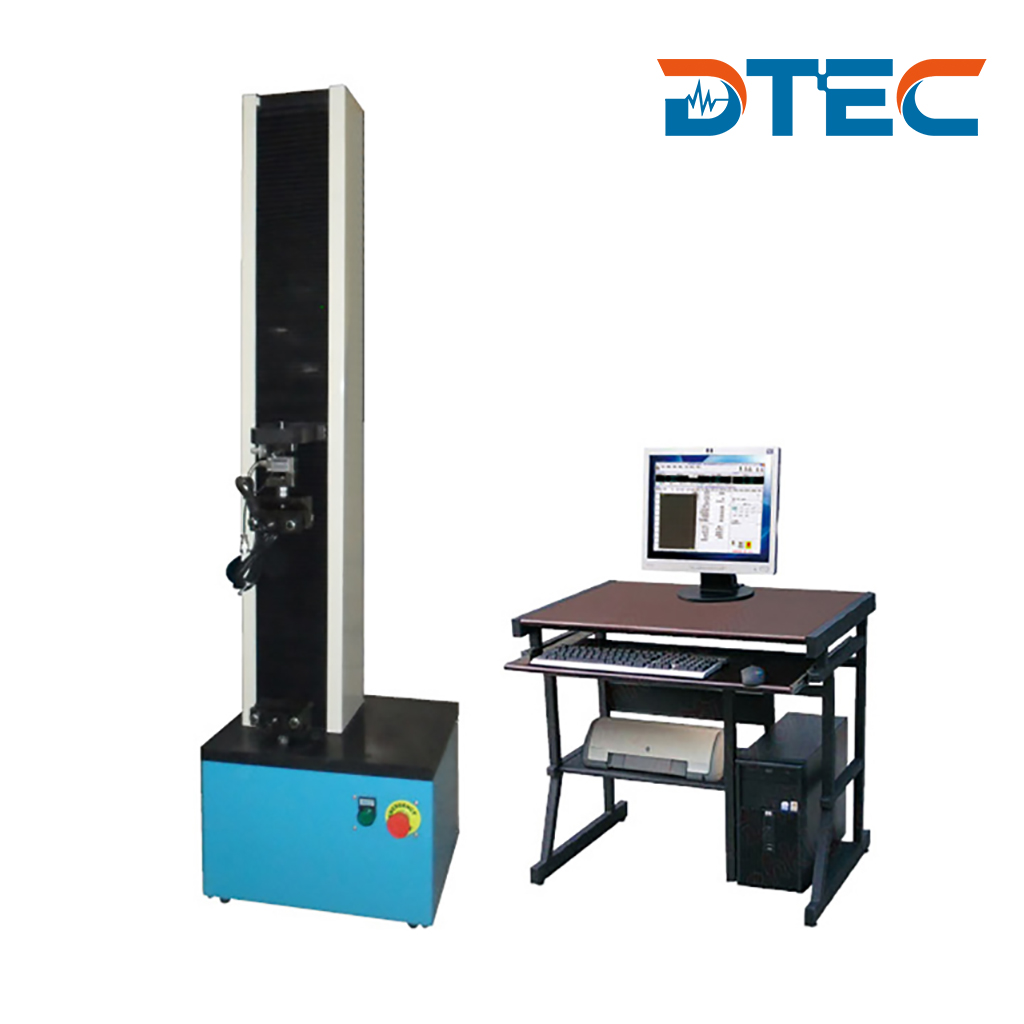

DDW Series Microcomputer Control Electronic Universal Testing Machine (Normal Configuration Single Arm Type) is equipped with Taiwan Servo Motor. The whole test is operated through PC with Data Pro Software, and all testing value and parameter can be displayed on software.

Using Scopes:
DDW Series Microcomputer Control Electronic Universal Testing Machine (Normal Configuration Single Arm Type) is applicable for tensile tests of materials with even smaller test force, such as rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests.

Equipment’s Main Structure:
Single type equipment adopts desktop-arm as well as double-space structure to achieve tension and compression, the movable beam can be adjusted freely, and it can change testing space size after changing column, screw rod and outer cover. Drive System compose of arc tooth synchronous belt and screw rod, which is smooth operation,high efficiency,low noise and environmental friendly.
►Built-in Controller: With built-in controller, ensure constant speed displacement control;

►Displacement Measuring Device: High-precision photoelectric encoder, with relative precision up to ± 0.5%;

►Testing Accessories:Various optional testing accessories, meet all your measurement requirement;

►Force Measurement:High-precision and high stability Spoke strain sensor and high-precision measuring amplification system ensures high-precision test force.
(Multiple sensors can be used to realize a broad range of test forces according to users’ requirements);

►Limit Switch:The Equipment has a limit protection for auto-stop;

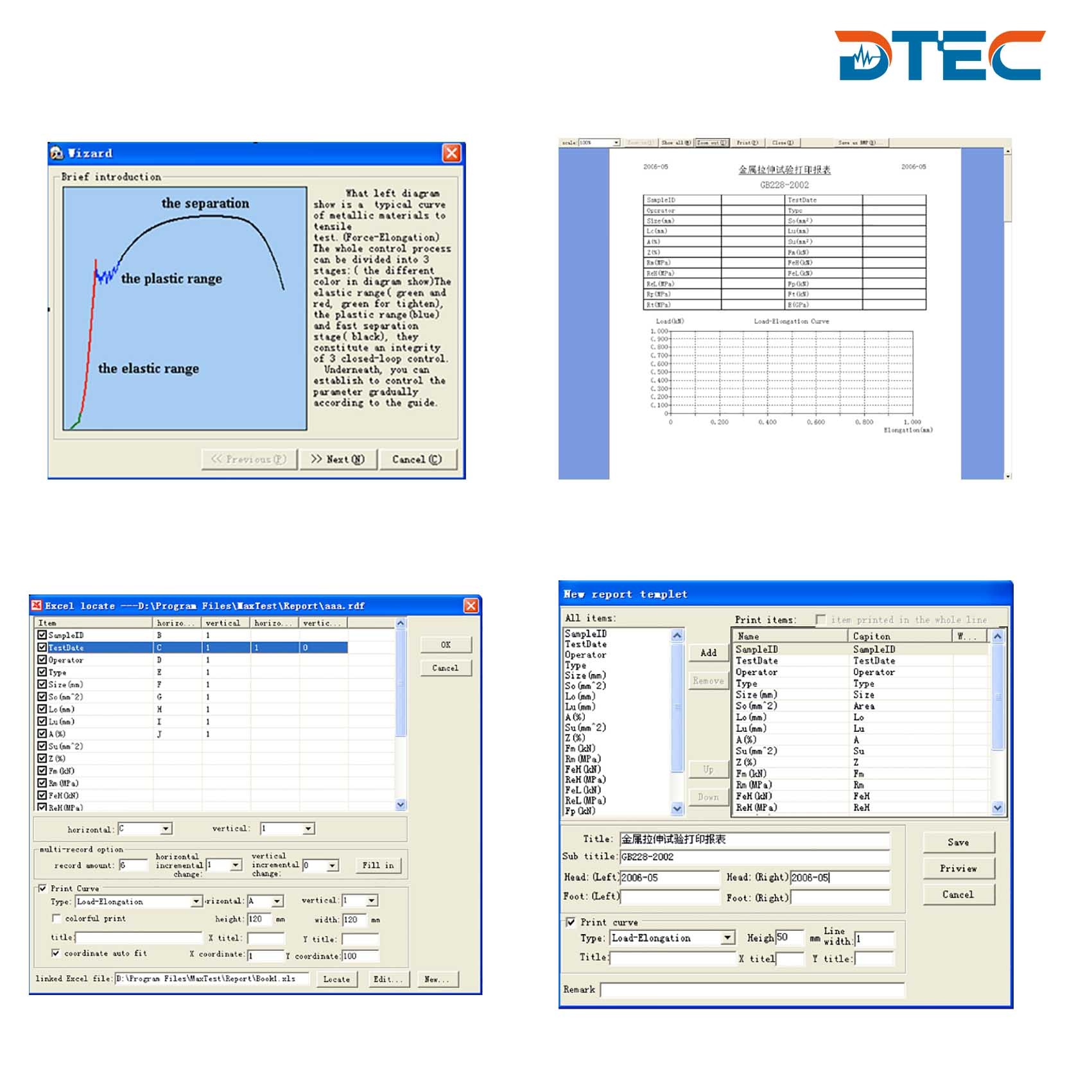

►Data Pro Software: With brand computer to control the software operating system. With the characteristics of high speed, mild interface and easy operation, it can meet measurement needs of different materials. With more than one hundred of test standards, it can satisfy the requirements of international standards, national standards and industry standards;

►Auto-calibration: The system is able to automatically achieve the calibration displayed standard values;

►Full Displaying: Real-time display on computer test force, peak value, displacement, speed, status, etc;

►Breaking Judgment: when the specimen is broken, the movable beam will automatically stop the test;

►Limit Protection: two protection functions of mechanical and control limit protections.
Series Models
DDW
0.5
1
2
5
Structural Form
Single Arm Type
Max. Testing Force (KN)
0.5
1
2
5
Operation Mode

Microcomputer Control (Full English Data Pro Software)

Measuring Range

2%-100% of the maximum testing force (or optional 0.4%-100%)

Relative Error on Indicated Values of Testing Force

Better Than ±1% of the Indicated Value (0.5% for special need)

Error on Deformation Display
±1% (Optional ±0.5%)
Min. Force Resolution
0.01N
Displacement Precision
±1% (±0.5% Optional)
Deformation Accuracy
Better than ±1% (±0.5% Optional)
Speed Governing Range
0.01-500mm/min
Testing Travelling Distance
﹥600 mm (can be customized according to needs)
Testing Space Adjusting Mechanism
AC Servo Motor, Drive by Synchronous Belt
Carried Standard
GB/T2611, ISO、ASTM、DIN
Protection Function

Overload Protection, Limit Protection

Power Supply
220V
Weight (Approximate KG)
120
Operating Conditions

Ambient Temperature -35°C, Humidity 20% - 80%

Clamp Type

Each One Piece of Standard Clamp for Tension Test and Compression Test (Optional Clamp If Needed;Special Clamp Can Also Be Customized for Customers)

Standard Packing:
Items
Qty.

Main Unit

1

Standard Double-clip Type Jig for Tension Test, Accessories for Compression Test

One Pcs. Each

PANASONIC AC Servo Motor

1

High-precision Loading Transducer

1
Precision Reducer System 1

High-precision photoelectric encoder

1

Desktop Computer

1

Inkjet Printer

1

Adjusted Full-digital Data Acquisition Board

1

Data Pro Software

1

Manual Book, Quality Certificate

One Pcs. Each


Optional Accessories:
